Details
- •Luminaires

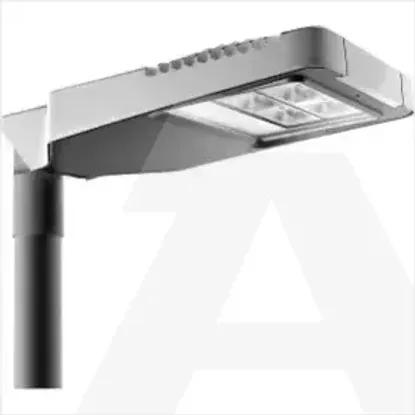

- •Luminaire for streets and places
- •1 KOM
- •GEWISS
Technical specifications
Mounting methodPost top
Colour housingGrey
Voltage typeAC
Lamp holderNone
Width330mm
Surface protectionPowder coating
Conductor cross section2.5mm²
Protection classII
Connection typeScrewed terminal
Material coverGlass structured
Lamp typeLED not exchangeable
Colour rendering index CRI70-79
Length690mm
Height/depth215mm
Number of poles2
Nominal current1000 - 1000mA
Suitable for spigot size42 - 76mm
Adjustable opticsNo
Luminaire with limited surface temperature, sign "D“No
Suitable for number of lamps3
Material housingAluminium
With connection cableNo
With light sensorNo
With light sourceYes
Impact strengthIK08
With control gearYes
Degree of protection (IP)IP66
Type of control gearLED operating device current-controlled
Colour of lightWhite
Max. system power111W
Remote controlNone
Colour temperature4000 - 4000K
Rated luminous flux according to IEC 62722-2-114800lm
Nominal voltage220 - 240V
Rated ambient temperature according to IEC62722-2-1-25 - 40°C
Dimming 1-10 VNo
IFTTT support availableNo
Colour consistency (McAdam ellipse)SDCM5
Dimming manufacturer's proprietary systemNo
Constant light output (CLO)No
Type of wiringEnding
Dimming mains voltage modulationNo
Dimming DMXNo
Dimming DALINo
With radio controlNo
With light regulation program controlYes
Dimming 0-10 VNo
Dimming potentiometer (integrated)No
Dimming LineSwitchNo
Light distributorReflector
Dimming phase cut-onNo
Dimming with push-buttonNo
No dim functionYes
Dimming Sine Wave ReductionNo
Dimming RFNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming phase cut-offNo
Dimming programmableNo
Dimming DSINo
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Luminaire efficacy133lm/W
Operation by BluetoothNo
Compatible with Amazon AlexaNo
Power factor0.9
Type of connection for sensor/communication moduleOther
Exchangeable control gearYes
