Details
- •Luminaires
- •Luminaire for streets and places
- •1 KOM
- •GEWISS
Technical specifications
Lamp holderNone
Connection typeScrewed terminal
Conductor cross section2.5mm²
Protection classII
Type of control gearLED operating device current-controlled
Number of poles2
With light sensorNo
Voltage typeAC

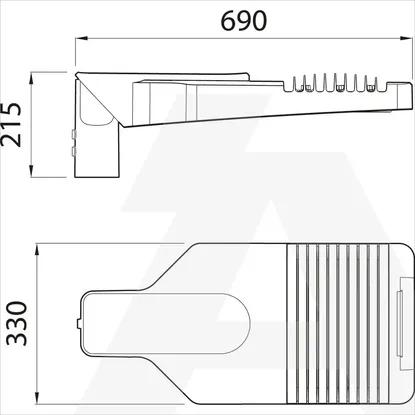

Width330mm
Surface protectionPowder coating
Colour rendering index CRI70-79
Mounting methodPost top
Colour housingGrey
Height/depth215mm
Luminaire with limited surface temperature, sign "D“No
Material housingAluminium
Length690mm
Degree of protection (IP)IP66
Nominal voltage220 - 240V
With connection cableNo
Impact strengthIK08
Lamp typeLED not exchangeable
Material coverGlass structured
With light sourceYes
With radio controlNo
Adjustable opticsNo
Max. system power186W
Suitable for spigot size42 - 76mm
Nominal current850 - 850mA
Suitable for number of lamps6
Colour temperature4000 - 4000K
Rated luminous flux according to IEC 62722-2-125800lm
Remote controlNone
With control gearYes
Colour of lightWhite
With light regulation program controlNo
IFTTT support availableNo
Constant light output (CLO)No
Dimming 1-10 VNo
Type of wiringEnding
Dimming 0-10 VNo
Dimming LineSwitchNo
Dimming DMXNo
Dimming potentiometer (integrated)No
Dimming mains voltage modulationNo
Dimming manufacturer's proprietary systemNo
Rated ambient temperature according to IEC62722-2-1-25 - 40°C
Dimming DALINo
Colour consistency (McAdam ellipse)SDCM5
Dimming with push-buttonNo
Dimming phase cut-offNo
Dimming phase cut-onNo
Dimming ZigbeeNo
Dimming RFNo
Dimming Sine Wave ReductionNo
No dim functionYes
Dimming programmableNo
Dimming Touch and DimNo
Light distributorReflector
Luminaire efficacy139lm/W
Dimming DSINo
Power factor0.9
Operation by BluetoothNo
Compatible with Apple HomeKitNo
Type of connection for sensor/communication moduleOther
Compatible with Amazon AlexaNo
Exchangeable control gearYes
Compatible with Google AssistantNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
MVN1220LD
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Luminaire for streets and places
- 1 KOM
- GEWISS
DetailsTechnical specifications
Technical specifications
Lamp holder
None
Connection type
Screwed terminal
Conductor cross section
2.5mm²
Protection class
II
Type of control gear
LED operating device current-controlled
Number of poles
2
With light sensor
Voltage type
AC
Width
330mm
Surface protection
Powder coating
Colour rendering index CRI
70-79
Mounting method
Post top
Colour housing
Grey
Height/depth
215mm
Luminaire with limited surface temperature, sign "D“
Material housing
Aluminium
Length
690mm
Degree of protection (IP)
IP66
Nominal voltage
220 .. 240V
With connection cable
Impact strength
IK08
Lamp type
LED not exchangeable
Material cover
Glass structured
With light source
With radio control
Adjustable optics
Max. system power
186W
Suitable for spigot size
42 .. 76mm
Nominal current
850 .. 850mA
Suitable for number of lamps
6
Colour temperature
4000 .. 4000K
Rated luminous flux according to IEC 62722-2-1
25800lm
Remote control
None
With control gear
Colour of light
White
With light regulation program control
IFTTT support available
Constant light output (CLO)
Dimming 1-10 V
Type of wiring
Ending
Dimming 0-10 V
Dimming LineSwitch
Dimming DMX
Dimming potentiometer (integrated)
Dimming mains voltage modulation
Dimming manufacturer's proprietary system
Rated ambient temperature according to IEC62722-2-1
-25 .. 40°C
Dimming DALI
Colour consistency (McAdam ellipse)
SDCM5
Dimming with push-button
Dimming phase cut-off
Dimming phase cut-on
Dimming Zigbee
Dimming RF
Dimming Sine Wave Reduction
No dim function
Dimming programmable
Dimming Touch and Dim
Light distributor
Reflector
Luminaire efficacy
139lm/W
Dimming DSI
Power factor
0.9
Operation by Bluetooth
Compatible with Apple HomeKit
Type of connection for sensor/communication module
Other
Compatible with Amazon Alexa
Exchangeable control gear
Compatible with Google Assistant
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
