MVH0013GL | BRN50 Heavy Load Cable Tray W305 Z275
Code: 1974439
ManufacturerGewiss
Catalog numberMVH0013GL
TypeLuminaire for streets and places
CategoryLuminaire for streets and places
EAN code3660612357960
Details
- •BRN50 HEAVY LOAD CABLE TRAY W305 Z275
- •Luminaires
- •Luminaire for streets and places
- •Minimum order quantity: 1 m
- •GEWISS
Technical specifications
With light sensorNo
Lamp holderNone
Type of control gearLED operating device current-controlled
Impact strengthIK08
Material housingAluminium
Number of poles2
Connection typeScrewed terminal
Conductor cross section2.5mm²

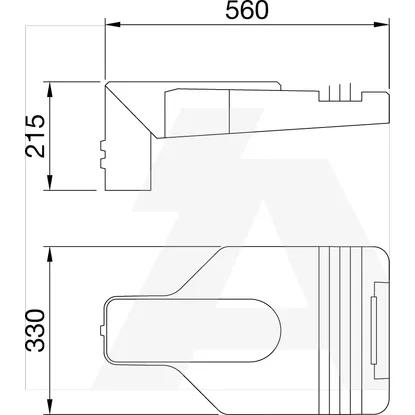

Height/depth215mm
Voltage typeAC
With connection cableNo
Surface protectionPowder coating
Length560mm
Material coverGlass structured
Protection classII
Colour rendering index CRI70-79
Width330mm
Rated luminous flux according to IEC 62722-2-14700lm
Colour temperature4000 - 4000K
Dimming 0-10 VNo
Luminaire with limited surface temperature, sign "D“No
Type of wiringEnding
With light regulation program controlYes
IFTTT support availableNo
With radio controlNo
Rated ambient temperature according to IEC62722-2-1-25 - 40°C
Dimming 1-10 VNo
Remote controlNone
With control gearYes
Constant light output (CLO)No
Nominal current1000 - 1000mA
Max. system power37W
Suitable for number of lamps1
Colour of lightWhite
Colour consistency (McAdam ellipse)SDCM5
With light sourceYes
Adjustable opticsNo
Suitable for spigot size42 - 76mm
Dimming potentiometer (integrated)No
Dimming DMXNo
Dimming DALINo
Dimming RFNo
Dimming programmableNo
Dimming mains voltage modulationNo
Dimming Sine Wave ReductionNo
Dimming phase cut-offNo
Dimming LineSwitchNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer's proprietary systemNo
Dimming phase cut-onNo
Dimming with push-buttonNo
Compatible with Amazon AlexaNo
Compatible with Google AssistantNo
Power factor0.9
Light distributorReflector
Luminaire efficacy127lm/W
Exchangeable control gearYes
Compatible with Apple HomeKitNo
Dimming DSINo
Operation by BluetoothNo
Type of connection for sensor/communication moduleOther
No dim functionYes
Mounting methodPost top
Colour housingGrey
Lamp typeLED not exchangeable
Nominal voltage220 - 240V
Degree of protection (IP)IP66
