MV60122 | ECO Bracket 50x150x70 Z275
Code: 1975097
ManufacturerGewiss
Catalog numberMV60122
TypeLuminaire for streets and places
CategoryLuminaire for streets and places
EAN code3660612010230
Details
- •ECO BRACKET 50x150x70 Z275
- •Luminaires
- •Luminaire for streets and places
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Lamp holderNone
With light sensorNo
Connection typeScrewed terminal
Colour rendering index CRI70-79
Material housingAluminium
Number of poles3
Conductor cross section2.5mm²

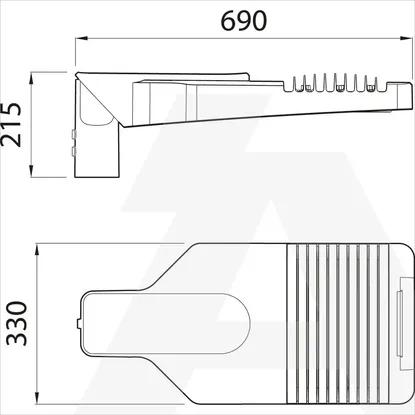

Length690mm
Height/depth215mm
Type of control gearLED operating device current-controlled
Width330mm
Surface protectionPowder coating
Voltage typeAC
Protection classI
With connection cableNo
Impact strengthIK08
Material coverGlass structured
Colour consistency (McAdam ellipse)SDCM5
Suitable for number of lamps5
Colour temperature4000 - 4000K
With light sourceYes
Suitable for spigot size42 - 76mm
Colour of lightWhite
Rated ambient temperature according to IEC62722-2-1-25 - 50°C
Luminaire with limited surface temperature, sign "D“No
Constant light output (CLO)No
Rated luminous flux according to IEC 62722-2-118300lm
With light regulation program controlNo
Adjustable opticsNo
IFTTT support availableNo
With radio controlNo
Nominal current700 - 700mA
With control gearYes
Max. system power127W
Remote controlNone
Type of wiringEnding
Dimming DALINo
Dimming DMXNo
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming manufacturer's proprietary systemNo
Dimming LineSwitchNo
Dimming potentiometer (integrated)No
Light distributorReflector
Dimming mains voltage modulationNo
Dimming phase cut-onNo
Dimming RFNo
Dimming DSINo
Operation by BluetoothNo
Dimming Sine Wave ReductionNo
Luminaire efficacy144lm/W
Dimming phase cut-offNo
Dimming Touch and DimNo
No dim functionYes
Dimming ZigbeeNo
Dimming with push-buttonNo
Exchangeable control gearYes
Compatible with Amazon AlexaNo
Compatible with Google AssistantNo
Power factor0.9
Type of connection for sensor/communication moduleOther
Dimming programmableNo
Compatible with Apple HomeKitNo
Mounting methodPost top
Colour housingGrey
Lamp typeLED not exchangeable
Nominal voltage220 - 240V
Degree of protection (IP)IP66
