MV60131 | EDF40 Bracket L200 Z275
Code: 1975398
ManufacturerGewiss
Catalog numberMV60131
TypeLuminaire for streets and places
CategoryLuminaire for streets and places
EAN code3660612010995
Details
- •EDF40 BRACKET L200 Z275
- •Luminaires
- •Luminaire for streets and places
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Connection typeScrewed terminal
Type of control gearLED operating device current-controlled
Conductor cross section2.5mm²
Protection classI
Voltage typeAC
Surface protectionPowder coating
Lamp holderNone

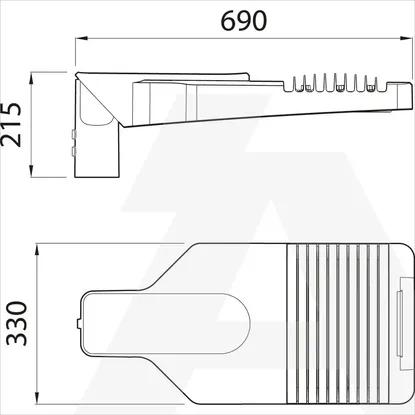

Width330mm
Number of poles3
With light sensorNo
Colour rendering index CRI70-79
Material housingAluminium
Height/depth215mm
Luminaire with limited surface temperature, sign "D“No
Length690mm
Impact strengthIK08
With connection cableNo
With control gearYes
Nominal current700 - 700mA
Adjustable opticsNo
With light sourceYes
Colour of lightWhite
Rated luminous flux according to IEC 62722-2-118300lm
Suitable for number of lamps5
Max. system power127W
Colour temperature4000 - 4000K
Material coverGlass structured
Suitable for spigot size42 - 76mm
IFTTT support availableNo
With light regulation program controlYes
With radio controlNo
Constant light output (CLO)No
Remote controlNone
Rated ambient temperature according to IEC62722-2-1-25 - 50°C
Dimming RFNo
Colour consistency (McAdam ellipse)SDCM5
Dimming potentiometer (integrated)No
Dimming 0-10 VNo
Type of wiringEnding
Dimming LineSwitchNo
Dimming phase cut-onNo
Dimming ZigbeeNo
Dimming 1-10 VNo
Dimming phase cut-offNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming DMXNo
Dimming DALINo
Dimming mains voltage modulationNo
Dimming programmableNo
Compatible with Apple HomeKitNo
Dimming DSINo
No dim functionYes
Luminaire efficacy144lm/W
Dimming with push-buttonNo
Light distributorReflector
Dimming manufacturer's proprietary systemNo
Operation by BluetoothNo
Compatible with Google AssistantNo
Exchangeable control gearYes
Power factor0.9
Compatible with Amazon AlexaNo
Type of connection for sensor/communication moduleOther
Mounting methodPost top
Colour housingGrey
Lamp typeLED not exchangeable
Nominal voltage220 - 240V
Degree of protection (IP)IP66
