MV90216 | EAC 600 ML100 HDG
Code: 1975531
ManufacturerGewiss
Catalog numberMV90216
TypeHigh bay luminaire
CategoryHigh bay luminaire
EAN code8011564836990
Details
- •EAC 600 ML100 HDG
- •Luminaires
- •High bay luminaire
- •Minimum order quantity: 1 m
- •GEWISS
Technical specifications
Lamp holderNone
Colour rendering index CRI80-89
Type of control gearLED operating device current-controlled
Conductor cross section1.5mm²
Ball-proofYes
ReflectorHigh-gloss
Number of poles3

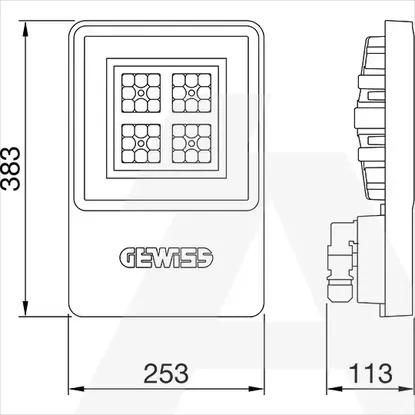

Width253mm
Voltage typeAC
Protection classI
Connection typePush-in clamp
Colour housingGrey
Mounting methodPendant
Suitable for emergency lightingNo
Reflector colourSilver
Material reflectorPlastic
Lamp typeLED not exchangeable
Material housingPlastic
Impact strengthIK08
Nominal voltage220 - 240V
Length383mm
Height/depth113mm
Light sharingSymmetric
Emergency power supply integratedNo
With protective coverYes
Beam angleWide beam 41-80°
With control gearYes
Nominal current250 - 250mA
Luminaire with limited surface temperature, sign "D“Yes
Rated luminous flux according to IEC 62722-2-17700lm
Suitable for number of lamps1
With light sourceYes
Photobiological safety according to EN 62471RG0
Constant light output (CLO)No
Dimming 0-10 VNo
Rated ambient temperature according to IEC62722-2-1-30 - 50°C
Type of wiringThrough wiring included
Dimming DMXNo
Dimming potentiometer (integrated)No
Colour consistency (McAdam ellipse)SDCM3
Dimming DALINo
Dimming LineSwitchNo
Filament test according to IEC 60695-2-11850 °C - 30 s
Dimming 1-10 VNo
Colour of lightWhite
Dimming manufacturer's proprietary systemNo
Dimming programmableNo
Dimming ZigbeeNo
Dimming mains voltage modulationNo
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming phase cut-offNo
Dimming with push-buttonNo
Dimming phase cut-onNo
No dim functionYes
Luminous flux adjustableNo
Dimming DSINo
Light distributorRefractor lens
Operation by BluetoothNo
Colour temperature adjustableNo
Exchangeable control gearYes
Max. number of luminaires per miniature circuit breaker C1617
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
Beam angle adjustableNo
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
Luminaire efficacy160lm/W
Suitable for auxiliary lampNo
Power factor0.9
Max. number of luminaires per miniature circuit breaker B1610
Degree of protection (IP)IP66
Colour temperature4000 - 4000K
Max. system power48W
