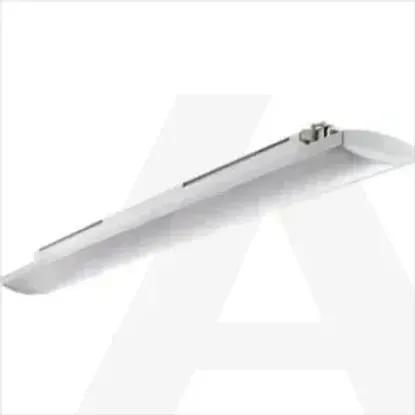

GWS3136P | SMART3 LED 1200 1X36 Opal
Code: 1975948
ManufacturerGewiss
Catalog numberGWS3136P
TypeCeiling-/wall luminaire
CategoryCeiling-/wall luminaire
EAN code8011564857537
Details
- •SMART3 LED 1200 1X36 OPALE
- •Luminaires
- •Ceiling-/wall luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Protection classII
Width110mm
Type of gridNone
Lamp holderOther
Conductor cross section2.5mm²
Suitable for suspended mountingYes
Voltage typeAC
Number of poles2
Height/depth76mm
Length1200mm
Colour rendering index CRI80-89
Suitable for wall mountingYes
Lamp typeLED not exchangeable
Material housingPlastic
With movement sensorNo
Connection typePush-in clamp
Type of control gearLED operating device current-controlled
With light sensorNo
Light sharingSymmetric
Suitable for emergency lightingNo
Suitable for light line configurationNo
Light outletDirect
Material coverPlastic, opal
Emergency power supply integratedNo
With light sourceYes
Impact strengthIK08
Degree of protection (IP)IP66
Covering of the luminaire with thermally insulating material possibleNo
Suitable for surface mountingYes
Suitable for workplace according to EN 12464-1No
Colour temperature4000 - 4000K
Nominal current267 - 267mA
With control gearYes
Colour of lightWhite
Max. system power20W
Suitable for number of lamps1
Rated luminous flux according to IEC 62722-2-12500lm
Constant light output (CLO)No
With air slotsNo
Luminaire with limited surface temperature, sign "D“Yes
Suitable for built-in mountingNo
Beam angleExtreme wide beam >80°
Type of wiringEnding
IFTTT support availableNo
Colour consistency (McAdam ellipse)SDCM3
Photobiological safety according to EN 62471RG0
Dimming 0-10 VNo
Filament test according to IEC 60695-2-11850 °C - 30 s
Dimming 1-10 VNo
Dimming phase cut-offNo
Rated ambient temperature according to IEC62722-2-1-25 - 50°C
Dimming Sine Wave ReductionNo
Dimming mains voltage modulationNo
Dimming potentiometer (integrated)No
Dimming with push-buttonNo
Dimming Touch and DimNo
Dimming LineSwitchNo
Dimming ZigbeeNo
Dimming DMXNo
Dimming DALINo
Dimming phase cut-onNo
Dimming manufacturer's proprietary systemNo
No dim functionYes
Luminaire efficacy125lm/W
Dimming RFNo
Light distributorReflector
Dimming programmableNo
Operation by BluetoothNo
Compatible with Apple HomeKitNo
Dimming DSINo
Unified Glare Ratio (UGR)22
Max. number of luminaires per miniature circuit breaker B1625
Compatible with Amazon AlexaNo
Luminous flux adjustableNo
Dimming DALI-2No
Colour temperature adjustableNo
Beam angle adjustableNo
Compatible with Google AssistantNo
Compatible with CasambiNo
Power factor0.9
Max. number of luminaires per miniature circuit breaker C1649
Suitable for ceiling mountingYes
Exchangeable control gearNo
Surface protection housingUntreated
Colour housingGrey
Nominal voltage220 - 240V
