Details
- •Luminaires
- •Ceiling-/wall luminaire
- •1 KOM
- •GEWISS
Technical specifications
Suitable for wall mountingYes
Rated ambient temperature according to IEC62722-2-1-25 - 50°C
Suitable for emergency lightingNo
Suitable for suspended mountingYes
Suitable for ceiling mountingYes
Suitable for surface mountingYes
Suitable for built-in mountingNo
Suitable for light line configurationNo
Lamp typeLED not exchangeable
Suitable for workplace according to EN 12464-1No
With light sourceYes
Suitable for number of lamps1
Surface protection housingUntreated
Material housingPlastic
Colour housingGrey
Type of gridNone
Material coverPlastic, transparent
Voltage typeAC
Type of control gearLED operating device current-controlled
Nominal voltage220 - 240V
With control gearYes
Dimming 0-10 VNo
Exchangeable control gearNo
Dimming 1-10 VNo
Dimming DALI-2No
Dimming DALINo
Dimming DMXNo
Dimming manufacturer's proprietary systemNo
Dimming potentiometer (integrated)No
Dimming DSINo
Dimming LineSwitchNo
Dimming phase cut-offNo
Dimming programmableNo
Emergency power supply integratedNo
With movement sensorNo
With light sensorNo
Covering of the luminaire with thermally insulating material possibleNo
With air slotsNo
Filament test according to IEC 60695-2-11850 °C - 30 s
Max. system power27W
Luminaire efficacy126lm/W
Rated luminous flux according to IEC 62722-2-13400lm
Colour of lightWhite
Colour temperature4000 - 4000K
Colour rendering index CRI80-89
Power factor0.9
Constant light output (CLO)No

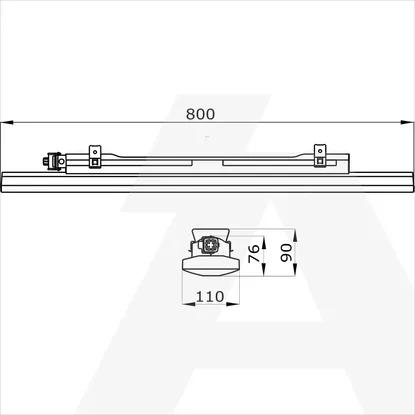

Width110mm
Height/depth76mm
Length800mm
Type of wiringEnding
Number of poles2
Conductor cross section2.5mm²
Connection typePush-in clamp
Photobiological safety according to EN 62471RG0
Unified Glare Ratio (UGR)25
Colour temperature adjustableNo
Luminous flux adjustableNo
Beam angle adjustableNo
Operation by BluetoothNo
Compatible with CasambiNo
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Dimming mains voltage modulationNo
Dimming phase cut-onNo
Dimming RFNo
Dimming Sine Wave ReductionNo
No dim functionYes
Dimming Touch and DimNo
Dimming with push-buttonNo
Light sharingSymmetric
IFTTT support availableNo
Beam angleExtreme wide beam >80°
Max. number of luminaires per miniature circuit breaker C1649
Dimming ZigbeeNo
Colour consistency (McAdam ellipse)SDCM3
Max. number of luminaires per miniature circuit breaker B1625
Protection classII
Degree of protection (IP)IP66
Light distributorReflector
Impact strengthIK08
Light outletDirect
Luminaire with limited surface temperature, sign "D“Yes
