Details
- •Luminaires
- •Ceiling-/wall luminaire
- •1 KOM
- •GEWISS
Technical specifications
Suitable for wall mountingYes
Rated ambient temperature according to IEC62722-2-1-25 - 50°C
Suitable for emergency lightingNo
Suitable for built-in mountingNo
Suitable for ceiling mountingYes
Suitable for suspended mountingYes
Suitable for surface mountingYes
Suitable for light line configurationNo
Emergency power supply integratedNo
With light sensorNo
Covering of the luminaire with thermally insulating material possibleNo
With air slotsNo
With movement sensorNo
Filament test according to IEC 60695-2-11850 °C - 30 s
Nominal voltage220 - 240V
Dimming 0-10 VNo
Exchangeable control gearNo
Dimming DSINo
Dimming DALI-2No
Material coverPlastic, transparent
With control gearYes
Type of control gearLED operating device current-controlled
Dimming 1-10 VNo
Dimming RFNo
Dimming LineSwitchNo
Dimming DALINo
Dimming mains voltage modulationNo
Dimming potentiometer (integrated)No
Dimming DMXNo
Dimming phase cut-onNo
Dimming phase cut-offNo
Dimming Touch and DimNo
Dimming manufacturer's proprietary systemNo
Dimming ZigbeeNo
Dimming Sine Wave ReductionNo
Colour consistency (McAdam ellipse)SDCM3
Dimming with push-buttonNo
Light distributorReflector
Suitable for workplace according to EN 12464-1No
Lamp typeLED not exchangeable
With light sourceYes
Material housingPlastic
Surface protection housingUntreated
Suitable for number of lamps1
Colour housingGrey
Max. system power27W
Luminaire efficacy119lm/W
Voltage typeAC
Type of gridNone
Rated luminous flux according to IEC 62722-2-13200lm
Colour of lightWhite
Colour temperature3000 - 3000K
Colour rendering index CRI80-89
Power factor0.9
Constant light output (CLO)No

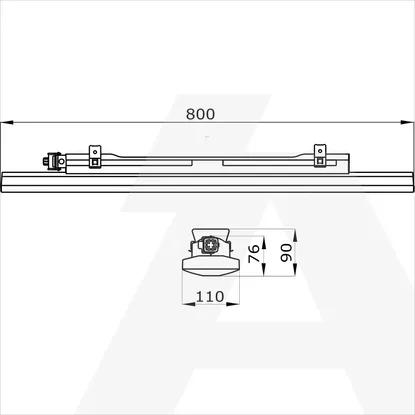

Width110mm
Height/depth76mm
Length800mm
Type of wiringEnding
Conductor cross section2.5mm²
Number of poles2
Connection typePush-in clamp
Photobiological safety according to EN 62471RG0
Unified Glare Ratio (UGR)25
Colour temperature adjustableNo
Luminous flux adjustableNo
Beam angle adjustableNo
Compatible with CasambiNo
Compatible with Apple HomeKitNo
Operation by BluetoothNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
IFTTT support availableNo
Dimming programmableNo
Protection classII
Light outletDirect
No dim functionYes
Light sharingSymmetric
Beam angleExtreme wide beam >80°
Max. number of luminaires per miniature circuit breaker C1649
Max. number of luminaires per miniature circuit breaker B1625
Impact strengthIK08
Luminaire with limited surface temperature, sign "D“Yes
Degree of protection (IP)IP66
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
GWS3218T30K | SMART3 LED 800 2X18 TRANSP.30K
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Ceiling-/wall luminaire
- 1 KOM
- GEWISS
DetailsTechnical specifications
Technical specifications
Suitable for wall mounting
Rated ambient temperature according to IEC62722-2-1
-25 .. 50°C
Suitable for emergency lighting
Suitable for built-in mounting
Suitable for ceiling mounting
Suitable for suspended mounting
Suitable for surface mounting
Suitable for light line configuration
Emergency power supply integrated
With light sensor
Covering of the luminaire with thermally insulating material possible
With air slots
With movement sensor
Filament test according to IEC 60695-2-11
850 °C - 30 s
Nominal voltage
220 .. 240V
Dimming 0-10 V
Exchangeable control gear
Dimming DSI
Dimming DALI-2
Material cover
Plastic, transparent
With control gear
Type of control gear
LED operating device current-controlled
Dimming 1-10 V
Dimming RF
Dimming LineSwitch
Dimming DALI
Dimming mains voltage modulation
Dimming potentiometer (integrated)
Dimming DMX
Dimming phase cut-on
Dimming phase cut-off
Dimming Touch and Dim
Dimming manufacturer's proprietary system
Dimming Zigbee
Dimming Sine Wave Reduction
Colour consistency (McAdam ellipse)
SDCM3
Dimming with push-button
Light distributor
Reflector
Suitable for workplace according to EN 12464-1
Lamp type
LED not exchangeable
With light source
Material housing
Plastic
Surface protection housing
Untreated
Suitable for number of lamps
1
Colour housing
Grey
Max. system power
27W
Luminaire efficacy
119lm/W
Voltage type
AC
Type of grid
None
Rated luminous flux according to IEC 62722-2-1
3200lm
Colour of light
White
Colour temperature
3000 .. 3000K
Colour rendering index CRI
80-89
Power factor
0.9
Constant light output (CLO)
Width
110mm
Height/depth
76mm
Length
800mm
Type of wiring
Ending
Conductor cross section
2.5mm²
Number of poles
2
Connection type
Push-in clamp
Photobiological safety according to EN 62471
RG0
Unified Glare Ratio (UGR)
25
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Compatible with Casambi
Compatible with Apple HomeKit
Operation by Bluetooth
Compatible with Google Assistant
Compatible with Amazon Alexa
IFTTT support available
Dimming programmable
Protection class
II
Light outlet
Direct
No dim function
Light sharing
Symmetric
Beam angle
Extreme wide beam >80°
Max. number of luminaires per miniature circuit breaker C16
49
Max. number of luminaires per miniature circuit breaker B16
25
Impact strength
IK08
Luminaire with limited surface temperature, sign "D“
Degree of protection (IP)
IP66
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
