Details
- •Luminaires
- •Ceiling-/wall luminaire
- •1 KOM
- •GEWISS
Technical specifications
Suitable for wall mountingYes
Rated ambient temperature according to IEC62722-2-1-25 - 50°C
Suitable for emergency lightingNo
Suitable for ceiling mountingYes
Suitable for suspended mountingYes
Suitable for built-in mountingNo
Suitable for surface mountingYes
Suitable for workplace according to EN 12464-1No
Suitable for number of lamps1
Suitable for light line configurationNo
Type of gridNone
Colour housingGrey
Material coverPlastic, opal
With light sourceYes
Surface protection housingUntreated
Material housingPlastic
Emergency power supply integratedNo
With movement sensorNo
With light sensorNo
Covering of the luminaire with thermally insulating material possibleNo
With air slotsNo
Filament test according to IEC 60695-2-11850 °C - 30 s
Max. system power40W
Rated luminous flux according to IEC 62722-2-14800lm
Colour of lightWhite
Luminaire efficacy120lm/W
Colour temperature3000 - 3000K
Colour rendering index CRI80-89
Power factor0.9
Constant light output (CLO)No
Dimming manufacturer's proprietary systemNo
Dimming DMXNo
Dimming programmableNo
Dimming DALINo
Dimming mains voltage modulationNo
Lamp typeLED not exchangeable
Dimming phase cut-offNo
Dimming LineSwitchNo
Dimming DSINo
Dimming phase cut-onNo
Dimming with push-buttonNo
Light distributorReflector
Dimming RFNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Max. number of luminaires per miniature circuit breaker B1625
Colour consistency (McAdam ellipse)SDCM3
No dim functionYes
Light sharingSymmetric
Nominal voltage220 - 240V
Dimming Sine Wave ReductionNo
Voltage typeAC
With control gearYes
Type of control gearLED operating device current-controlled
Beam angleExtreme wide beam >80°
Exchangeable control gearNo
Dimming 0-10 VNo
Dimming DALI-2No

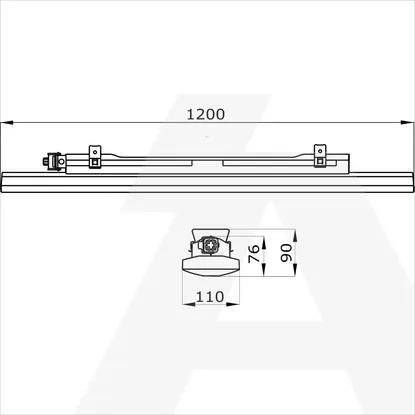

Width110mm
Height/depth76mm
Length1200mm
Dimming 1-10 VNo
Type of wiringEnding
Number of poles2
Conductor cross section2.5mm²
Connection typePush-in clamp
Photobiological safety according to EN 62471RG0
Unified Glare Ratio (UGR)25
Colour temperature adjustableNo
Luminous flux adjustableNo
Beam angle adjustableNo
Operation by BluetoothNo
Compatible with CasambiNo
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
IFTTT support availableNo
Compatible with Amazon AlexaNo
Light outletDirect
Max. number of luminaires per miniature circuit breaker C1649
Impact strengthIK08
Protection classII
Degree of protection (IP)IP66
Luminaire with limited surface temperature, sign "D“Yes
Dimming potentiometer (integrated)No
