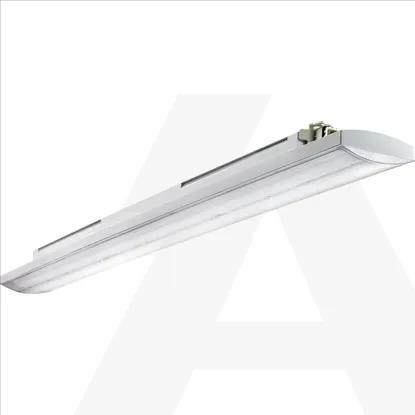

GWS3258T30K | SMART3 LED 1600 2X58 TRANSP.30K
Code: 1975968
ManufacturerGewiss
Catalog numberGWS3258T30K
TypeCeiling-/wall luminaire
CategoryCeiling-/wall luminaire
EAN code8011564872561
Details
- •SMART3 LED 1600 2X58 TRASPAR.30K
- •Luminaires
- •Ceiling-/wall luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Connection typePush-in clamp
Conductor cross section2.5mm²
Lamp holderOther
Width110mm
Protection classII
With light sensorNo
Colour rendering index CRI80-89
Suitable for wall mountingYes
Number of poles2
Type of control gearLED operating device current-controlled
With movement sensorNo
Voltage typeAC
Suitable for suspended mountingYes
Type of gridNone
Suitable for emergency lightingNo
Material coverPlastic, transparent
Height/depth76mm
Suitable for light line configurationNo
Covering of the luminaire with thermally insulating material possibleNo
Emergency power supply integratedNo
Material housingPlastic
Luminaire with limited surface temperature, sign "D“Yes
Degree of protection (IP)IP66
Suitable for number of lamps1
Light sharingSymmetric
Light outletDirect
With light sourceYes
Suitable for built-in mountingNo
Length1600mm
Lamp typeLED not exchangeable
Impact strengthIK08
Colour temperature3000 - 3000K
Suitable for workplace according to EN 12464-1No
Max. system power50W
Suitable for surface mountingYes
Nominal current280 - 280mA
Beam angleExtreme wide beam >80°
With control gearYes
Dimming ZigbeeNo
Dimming Sine Wave ReductionNo
Colour consistency (McAdam ellipse)SDCM3
Dimming mains voltage modulationNo
Dimming RFNo
Colour of lightWhite
Dimming manufacturer's proprietary systemNo
IFTTT support availableNo
With air slotsNo
Dimming DALINo
Dimming 1-10 VNo
Dimming 0-10 VNo
Dimming Touch and DimNo
Type of wiringEnding
Rated ambient temperature according to IEC62722-2-1-25 - 50°C
Dimming phase cut-offNo
Dimming phase cut-onNo
Dimming DMXNo
Filament test according to IEC 60695-2-11850 °C - 30 s
Dimming potentiometer (integrated)No
Rated luminous flux according to IEC 62722-2-16400lm
Photobiological safety according to EN 62471RG0
Constant light output (CLO)No
Dimming LineSwitchNo
Dimming programmableNo
Compatible with Google AssistantNo
Light distributorReflector
Max. number of luminaires per miniature circuit breaker C1649
No dim functionYes
Dimming DALI-2No
Luminaire efficacy128lm/W
Unified Glare Ratio (UGR)25
Colour temperature adjustableNo
Operation by BluetoothNo
Luminous flux adjustableNo
Max. number of luminaires per miniature circuit breaker B1625
Compatible with Amazon AlexaNo
Compatible with Apple HomeKitNo
Dimming DSINo
Dimming with push-buttonNo
Compatible with CasambiNo
Power factor0.9
Exchangeable control gearNo
Beam angle adjustableNo
Suitable for ceiling mountingYes
Surface protection housingUntreated
Colour housingGrey
Nominal voltage220 - 240V
