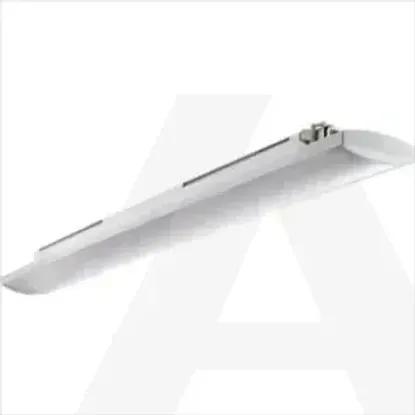

GWS3136PD | SMART3 LED 1200 1X36 Opal DALI
Code: 1975973
ManufacturerGewiss
Catalog numberGWS3136PD
TypeCeiling-/wall luminaire
CategoryCeiling-/wall luminaire
EAN code8011564869196
Details
- •SMART3 LED 1200 1X36 OPALE DALI
- •Luminaires
- •Ceiling-/wall luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Protection classII
Conductor cross section2.5mm²
Width110mm
Lamp holderOther
Connection typePush-in clamp
Voltage typeAC
Type of control gearLED operating device current-controlled
Lamp typeLED not exchangeable
Height/depth76mm
With movement sensorNo
Length1200mm
Suitable for light line configurationNo
Material housingPlastic
Number of poles2
Suitable for suspended mountingYes
Suitable for emergency lightingNo
Suitable for wall mountingYes
Colour rendering index CRI80-89
Type of gridNone
With light sensorNo
Light sharingSymmetric
Luminaire with limited surface temperature, sign "D“Yes
Material coverPlastic, opal
With light sourceYes
Impact strengthIK08
Light outletDirect
Degree of protection (IP)IP66
Emergency power supply integratedNo
Covering of the luminaire with thermally insulating material possibleNo
Suitable for number of lamps1
Colour temperature4000 - 4000K
Beam angleExtreme wide beam >80°
Nominal current275 - 275mA
Suitable for surface mountingYes
Rated ambient temperature according to IEC62722-2-1-25 - 50°C
Suitable for built-in mountingNo
Dimming DALIYes
Constant light output (CLO)No
Rated luminous flux according to IEC 62722-2-12500lm
Dimming potentiometer (integrated)No
Colour consistency (McAdam ellipse)SDCM3
IFTTT support availableNo
Dimming DMXNo
With control gearYes
Type of wiringEnding
With air slotsNo
Suitable for workplace according to EN 12464-1No
Dimming 0-10 VNo
Photobiological safety according to EN 62471RG0
Dimming 1-10 VNo
Colour of lightWhite
Max. system power20W
Filament test according to IEC 60695-2-11850 °C - 30 s
Dimming DALI-2No
Dimming with push-buttonNo
Dimming programmableNo
Dimming phase cut-onNo
Dimming RFNo
Compatible with Amazon AlexaNo
Compatible with Apple HomeKitNo
Dimming ZigbeeNo
Compatible with Google AssistantNo
Luminaire efficacy125lm/W
Dimming Touch and DimNo
Unified Glare Ratio (UGR)22
Dimming LineSwitchNo
Operation by BluetoothNo
No dim functionNo
Dimming DSINo
Colour temperature adjustableNo
Max. number of luminaires per miniature circuit breaker B1625
Light distributorReflector
Dimming mains voltage modulationNo
Luminous flux adjustableContinuously variable
Max. number of luminaires per miniature circuit breaker C1649
Dimming manufacturer's proprietary systemNo
Dimming phase cut-offNo
Dimming Sine Wave ReductionNo
Beam angle adjustableNo
Exchangeable control gearNo
Power factor0.9
Compatible with CasambiNo
Suitable for ceiling mountingYes
Surface protection housingUntreated
Colour housingGrey
Nominal voltage220 - 240V
