GWS3258PD | SMART3 LED 1600 2X58 Opal DALI
Code: 1975989
ManufacturerGewiss
Catalog numberGWS3258PD
TypeCeiling-/wall luminaire
CategoryCeiling-/wall luminaire
EAN code8011564869233
Details
- •SMART3 LED 1600 2X58 OPAL DALI
- •Luminaires
- •Ceiling-/wall luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Connection typePush-in clamp
Conductor cross section2.5mm²
Type of gridNone
Suitable for wall mountingYes
With movement sensorNo
Lamp holderOther

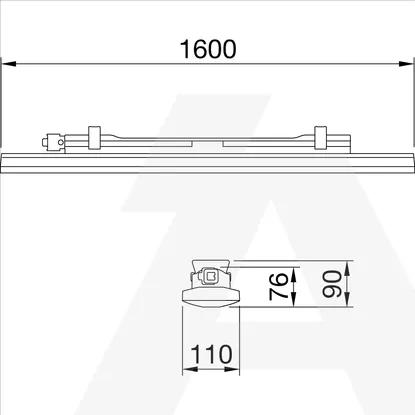

Width110mm
With light sensorNo
Colour rendering index CRI80-89
Type of control gearLED operating device current-controlled
Voltage typeAC
Protection classII
Height/depth76mm
Length1600mm
Lamp typeLED not exchangeable
Material coverPlastic, opal
Light sharingSymmetric
Suitable for emergency lightingNo
Suitable for light line configurationNo
Suitable for suspended mountingYes
Number of poles4
Material housingPlastic
Light outletDirect
Suitable for workplace according to EN 12464-1No
Emergency power supply integratedNo
Suitable for built-in mountingNo
Impact strengthIK08
Luminaire with limited surface temperature, sign "D“Yes
With control gearYes
Max. system power50W
Suitable for surface mountingYes
Beam angleExtreme wide beam >80°
Colour of lightWhite
With light sourceYes
Constant light output (CLO)No
Suitable for number of lamps1
IFTTT support availableNo
Covering of the luminaire with thermally insulating material possibleNo
Nominal current277 - 277mA
With air slotsNo
Colour temperature4000 - 4000K
Degree of protection (IP)IP66
Rated luminous flux according to IEC 62722-2-16400lm
Type of wiringEnding
Rated ambient temperature according to IEC62722-2-1-25 - 50°C
Photobiological safety according to EN 62471RG0
Colour consistency (McAdam ellipse)SDCM3
Filament test according to IEC 60695-2-11850 °C - 30 s
Dimming mains voltage modulationNo
Dimming 1-10 VNo
Dimming potentiometer (integrated)No
Dimming 0-10 VNo
Dimming DALIYes
Dimming LineSwitchNo
Dimming DMXNo
Dimming manufacturer's proprietary systemNo
Dimming phase cut-offNo
Dimming ZigbeeNo
Compatible with Google AssistantNo
Light distributorReflector
Dimming DSINo
Dimming with push-buttonNo
No dim functionNo
Dimming Touch and DimNo
Unified Glare Ratio (UGR)25
Dimming programmableNo
Dimming phase cut-onNo
Compatible with Apple HomeKitNo
Luminaire efficacy128lm/W
Dimming Sine Wave ReductionNo
Operation by BluetoothNo
Dimming RFNo
Compatible with Amazon AlexaNo
Max. number of luminaires per miniature circuit breaker B1625
Max. number of luminaires per miniature circuit breaker C1649
Luminous flux adjustableContinuously variable
Power factor0.9
Compatible with CasambiNo
Suitable for ceiling mountingYes
Dimming DALI-2No
Beam angle adjustableNo
Exchangeable control gearNo
Colour temperature adjustableNo
Surface protection housingUntreated
Colour housingGrey
Nominal voltage220 - 240V
