GWS3258TL30K | SMART3 LED 1600 2X58 TRANSP.30K QW
Code: 1976017
ManufacturerGewiss
Catalog numberGWS3258TL30K
TypeCeiling-/wall luminaire
CategoryCeiling-/wall luminaire
EAN code8011564877238
Details
- •SMART3 LED 1600 2X58 TRASPAR.30K LP
- •Luminaires
- •Ceiling-/wall luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications

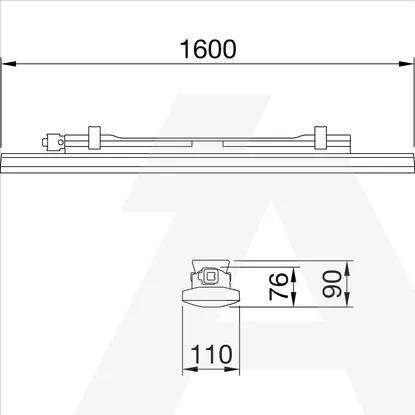

Width110mm
Lamp holderOther
Conductor cross section2.5mm²
Voltage typeAC
Connection typePush-in clamp
Protection classII
Type of gridNone
With movement sensorNo
Type of control gearLED operating device current-controlled
Length1600mm
Suitable for suspended mountingYes
Number of poles2
Colour rendering index CRI80-89
With light sensorNo
Suitable for wall mountingYes
Light outletDirect
Material housingPlastic
Height/depth76mm
With light sourceYes
Lamp typeLED not exchangeable
Emergency power supply integratedNo
Luminaire with limited surface temperature, sign "D“Yes
Light sharingSymmetric
Material coverPlastic, transparent
Suitable for number of lamps1
Suitable for emergency lightingNo
Suitable for light line configurationYes
Covering of the luminaire with thermally insulating material possibleNo
Degree of protection (IP)IP66
Impact strengthIK08
Suitable for workplace according to EN 12464-1No
Suitable for built-in mountingNo
Beam angleExtreme wide beam >80°
Colour temperature3000 - 3000K
With control gearYes
Max. system power50W
Nominal current280 - 280mA
Colour of lightWhite
Rated luminous flux according to IEC 62722-2-16400lm
Suitable for surface mountingYes
With air slotsNo
Type of wiringThrough wiring included
Photobiological safety according to EN 62471RG0
IFTTT support availableNo
Rated ambient temperature according to IEC62722-2-1-25 - 50°C
Dimming 0-10 VNo
Filament test according to IEC 60695-2-11850 °C - 30 s
Constant light output (CLO)No
Colour consistency (McAdam ellipse)SDCM3
Dimming DALINo
Dimming 1-10 VNo
Dimming potentiometer (integrated)No
Dimming DMXNo
Dimming LineSwitchNo
Dimming manufacturer's proprietary systemNo
Dimming mains voltage modulationNo
No dim functionYes
Dimming phase cut-offNo
Dimming phase cut-onNo
Dimming with push-buttonNo
Dimming RFNo
Dimming Touch and DimNo
Dimming programmableNo
Dimming Sine Wave ReductionNo
Dimming ZigbeeNo
Unified Glare Ratio (UGR)25
Compatible with Google AssistantNo
Compatible with Apple HomeKitNo
Max. number of luminaires per miniature circuit breaker C1649
Luminaire efficacy128lm/W
Compatible with Amazon AlexaNo
Operation by BluetoothNo
Light distributorReflector
Dimming DSINo
Dimming DALI-2No
Beam angle adjustableNo
Max. number of luminaires per miniature circuit breaker B1625
Exchangeable control gearNo
Luminous flux adjustableNo
Colour temperature adjustableNo
Suitable for ceiling mountingYes
Compatible with CasambiNo
Power factor0.9
Surface protection housingUntreated
Colour housingGrey
Nominal voltage220 - 240V
