Details
- •Luminaires
- •High bay luminaire
- •1 M
- •GEWISS
Technical specifications
Mounting methodPendant
Protection classI
Lamp holderNone

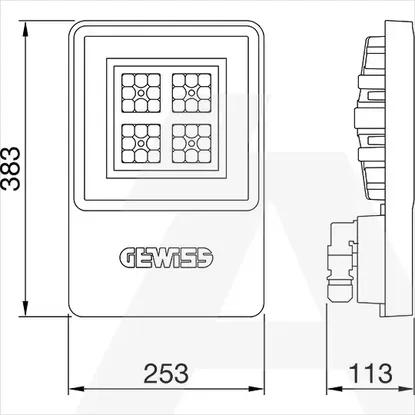

Width253mm
ReflectorHigh-gloss
Connection typePush-in clamp
Reflector colourSilver
Conductor cross section1.5mm²
Material housingPlastic
Number of poles3
Colour housingGrey
Material reflectorPlastic
Light sharingSymmetric
Impact strengthIK08
Height/depth113mm
Length383mm
Colour rendering index CRI80-89
Ball-proofYes
Lamp typeLED not exchangeable
Suitable for emergency lightingNo
Nominal voltage220 - 240V
Voltage typeAC
Type of control gearLED operating device current-controlled
Degree of protection (IP)IP66
With control gearYes
Suitable for number of lamps1
With light sourceYes
With protective coverYes
Emergency power supply integratedNo
Luminaire with limited surface temperature, sign "D“Yes
Colour of lightWhite
Constant light output (CLO)No
Rated luminous flux according to IEC 62722-2-17700lm
Beam angleExtreme wide beam >80°
Colour temperature4000 - 4000K
Max. system power48W
Photobiological safety according to EN 62471RG0
Dimming 0-10 VNo
Rated ambient temperature according to IEC62722-2-1-30 - 60°C
Dimming 1-10 VNo
Colour consistency (McAdam ellipse)SDCM3
Filament test according to IEC 60695-2-11850 °C - 30 s
Dimming potentiometer (integrated)No
Dimming DMXNo
Dimming DALINo
Dimming LineSwitchNo
Type of wiringEnding
Nominal current250 - 250mA
Dimming manufacturer's proprietary systemNo
Dimming phase cut-offNo
Dimming Sine Wave ReductionNo
Dimming RFNo
Dimming programmableNo
Dimming mains voltage modulationNo
Dimming phase cut-onNo
Dimming with push-buttonNo
Suitable for auxiliary lampNo
Light distributorRefractor lens
Dimming ZigbeeNo
Beam angle adjustableNo
Max. number of luminaires per miniature circuit breaker C1617
Colour temperature adjustableNo
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
Luminaire efficacy160lm/W
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
Exchangeable control gearYes
Max. number of luminaires per miniature circuit breaker B1610
Power factor0.9
Dimming Touch and DimNo
Operation by BluetoothNo
Luminous flux adjustableNo
Dimming DSINo
No dim functionYes
