GWS4220FC840 | SMART[4]HB 2M S.al.on/off Atex ASI.40K
Code: 1976823
ManufacturerGewiss
Catalog numberGWS4220FC840
TypeHigh bay luminaire
CategoryHigh bay luminaire
EAN code8034035058011
Details
- •SMART[4]HB 2M S.AL.ON/OFF ATEX ASI.40K
- •Luminaires
- •High bay luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Colour housingGrey
Lamp holderNone
Protection classI
Mounting methodPendant
Connection typePush-in clamp
Conductor cross section1.5mm²
ReflectorHigh-gloss

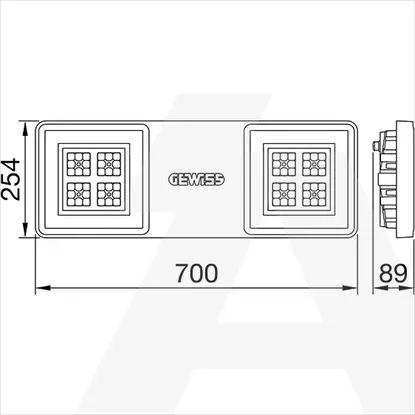

Width254mm
Material reflectorPlastic
Colour rendering index CRI80-89
Nominal voltage220 - 240V
Number of poles3
Beam angleWide beam 41-80°
Height/depth89mm
With protective coverYes
Suitable for emergency lightingNo
Nominal current325 - 325mA
Reflector colourSilver
Suitable for number of lamps2
With control gearYes
Material housingPlastic
Length700mm
Impact strengthIK08
Light sharingAsymmetric
Ball-proofYes
Voltage typeAC
With light sourceYes
Lamp typeLED not exchangeable
Luminaire with limited surface temperature, sign "D“Yes
Emergency power supply integratedNo
Type of control gearLED operating device current-controlled
Dimming DMXNo
Dimming 0-10 VNo
Colour consistency (McAdam ellipse)SDCM3
Dimming LineSwitchNo
Dimming programmableNo
Constant light output (CLO)No
Filament test according to IEC 60695-2-11850 °C - 30 s
Dimming ZigbeeNo
Dimming DALINo
Colour of lightWhite
Rated luminous flux according to IEC 62722-2-117800lm
Dimming 1-10 VNo
Dimming phase cut-offNo
Dimming RFNo
Dimming phase cut-onNo
Dimming potentiometer (integrated)No
Dimming Touch and DimNo
Rated ambient temperature according to IEC62722-2-15 - 40°C
Dimming Sine Wave ReductionNo
Dimming manufacturer's proprietary systemNo
Type of wiringEnding
Dimming mains voltage modulationNo
Photobiological safety according to EN 62471RG0
Dimming with push-buttonNo
No dim functionYes
Exchangeable control gearYes
Light distributorRefractor lens
Suitable for auxiliary lampNo
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
Luminous flux adjustableNo
Dimming DSINo
Power factor0.9
Max. number of luminaires per miniature circuit breaker C1611
Colour temperature adjustableNo
Max. number of luminaires per miniature circuit breaker B167
Beam angle adjustableNo
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
Luminaire efficacy140lm/W
Operation by BluetoothNo
Degree of protection (IP)IP66
Colour temperature4000 - 4000K
Max. system power127W
