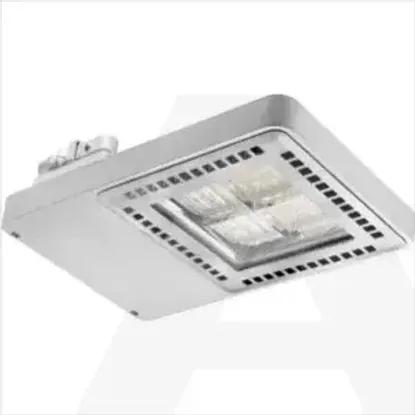

GWS4120HC840 | SMART[4]LB 1M St.al.on/off Haccp ASI.40K
Code: 1976849
ManufacturerGewiss
Catalog numberGWS4120HC840
TypeHigh bay luminaire
CategoryHigh bay luminaire
EAN code8034035065705
Details
- •SMART[4]LB 1M ST.AL.ON/OFF HACCP ASI.40K
- •Luminaires
- •High bay luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Connection typePush-in clamp
Lamp holderNone
Ball-proofYes
Conductor cross section1.5mm²
Type of control gearLED operating device current-controlled
Voltage typeAC
Number of poles3
Colour housingGrey
ReflectorHigh-gloss
Protection classI
Width253mm
Colour rendering index CRI80-89
Mounting methodPendant
Height/depth113mm
Material housingPlastic
Lamp typeLED not exchangeable
Length383mm
Reflector colourSilver
With light sourceYes
Material reflectorPlastic
Nominal voltage220 - 240V
Beam angleWide beam 41-80°
With protective coverYes
Constant light output (CLO)No
Light sharingAsymmetric
Emergency power supply integratedNo
Suitable for emergency lightingNo
Luminaire with limited surface temperature, sign "D“Yes
Suitable for number of lamps1
With control gearYes
Colour of lightWhite
Nominal current330 - 330mA
Rated luminous flux according to IEC 62722-2-18900lm
Impact strengthIK07
Type of wiringEnding
Photobiological safety according to EN 62471RG0
Dimming DMXNo
Dimming 1-10 VNo
Dimming potentiometer (integrated)No
Filament test according to IEC 60695-2-11650 °C - 30 s
Dimming manufacturer's proprietary systemNo
Colour consistency (McAdam ellipse)SDCM3
Dimming ZigbeeNo
No dim functionYes
Rated ambient temperature according to IEC62722-2-1-30 - 50°C
Dimming with push-buttonNo
Dimming programmableNo
Dimming Touch and DimNo
Dimming DALINo
Dimming Sine Wave ReductionNo
Dimming mains voltage modulationNo
Dimming phase cut-onNo
Dimming 0-10 VNo
Dimming phase cut-offNo
Dimming LineSwitchNo
Dimming RFNo
Luminaire efficacy139lm/W
Suitable for auxiliary lampNo
Dimming DSINo
Light distributorRefractor lens
Max. number of luminaires per miniature circuit breaker B1610
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
Power factor0.9
Beam angle adjustableNo
Exchangeable control gearYes
Max. number of luminaires per miniature circuit breaker C1617
Luminous flux adjustableNo
Operation by BluetoothNo
Colour temperature adjustableNo
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
Degree of protection (IP)IP65
Colour temperature4000 - 4000K
Max. system power64W
