GWS4121HC840 | SMART[4]LB 1M St.al.dali Haccp ASI.4000K
Code: 1976885
ManufacturerGewiss
Catalog numberGWS4121HC840

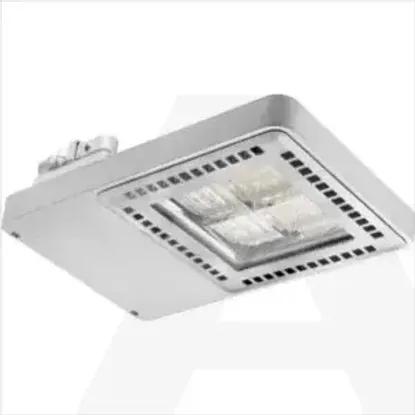

TypeHigh bay luminaire
CategoryHigh bay luminaire
EAN code8034035065828
Details
- •SMART[4]LB 1M ST.AL.DALI HACCP ASI.40K
- •Luminaires
- •High bay luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Conductor cross section1.5mm²
Protection classI
Lamp holderNone
ReflectorHigh-gloss
Width253mm
Mounting methodPendant
Type of control gearLED operating device current-controlled
Connection typePush-in clamp
Colour rendering index CRI80-89
Ball-proofNo
Height/depth113mm
Voltage typeAC
Number of poles5
Length383mm
Material housingPlastic
Light sharingAsymmetric
Suitable for emergency lightingNo
Impact strengthIK07
Reflector colourSilver
Material reflectorPlastic
Lamp typeLED not exchangeable
Nominal voltage220 - 240V
Emergency power supply integratedNo
Beam angleWide beam 41-80°
Suitable for number of lamps1
With light sourceYes
Luminaire with limited surface temperature, sign "D“Yes
Colour housingGrey
With control gearYes
With protective coverYes
Nominal current330 - 330mA
Colour of lightWhite
Rated luminous flux according to IEC 62722-2-18900lm
Constant light output (CLO)No
Type of wiringEnding
Colour consistency (McAdam ellipse)SDCM3
Photobiological safety according to EN 62471RG0
Dimming potentiometer (integrated)No
Dimming LineSwitchNo
Rated ambient temperature according to IEC62722-2-1-30 - 50°C
Dimming DALIYes
Dimming DMXNo
Filament test according to IEC 60695-2-11650 °C - 30 s
Dimming 1-10 VNo
Dimming phase cut-offNo
Dimming 0-10 VNo
Dimming manufacturer's proprietary systemNo
Dimming mains voltage modulationNo
Dimming RFNo
Dimming Touch and DimNo
Dimming programmableNo
Dimming phase cut-onNo
Dimming Sine Wave ReductionNo
Dimming ZigbeeNo
No dim functionNo
Light distributorRefractor lens
Dimming with push-buttonNo
Max. number of luminaires per miniature circuit breaker C1617
Dimming DSINo
Operation by BluetoothNo
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
Max. number of luminaires per miniature circuit breaker B1610
Colour temperature adjustableNo
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
Luminous flux adjustableContinuously variable
Power factor0.9
Beam angle adjustableNo
Suitable for auxiliary lampNo
Exchangeable control gearYes
Luminaire efficacy139lm/W
Degree of protection (IP)IP65
Colour temperature4000 - 4000K
Max. system power64W
