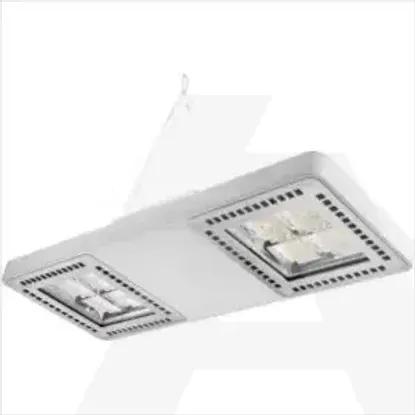

GWS4221HC840 | SMART[4]HB 2M St.al.dali Haccp ASI.40K
Code: 1976897
ManufacturerGewiss
Catalog numberGWS4221HC840
TypeHigh bay luminaire
CategoryHigh bay luminaire
EAN code8034035066061
Details
- •SMART[4]HB 2M ST.AL.DALI HACCP ASI.40K
- •Luminaires
- •High bay luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Voltage typeAC
Colour housingGrey
Conductor cross section1.5mm²
Ball-proofNo
Width254mm
Material housingPlastic
Mounting methodPendant
Connection typePush-in clamp
Height/depth113mm
Number of poles5
Protection classI
Length700mm
Lamp typeLED not exchangeable
Type of control gearLED operating device current-controlled
Colour rendering index CRI80-89
Lamp holderNone
ReflectorHigh-gloss
Light sharingAsymmetric
Suitable for emergency lightingNo
Reflector colourSilver
With light sourceYes
Material reflectorPlastic
Emergency power supply integratedNo
With control gearYes
Nominal voltage220 - 240V
Type of wiringEnding
Filament test according to IEC 60695-2-11650 °C - 30 s
Luminaire with limited surface temperature, sign "D“Yes
Photobiological safety according to EN 62471RG0
Beam angleWide beam 41-80°
Dimming 1-10 VNo
With protective coverYes
Dimming 0-10 VNo
Impact strengthIK07
Rated ambient temperature according to IEC62722-2-1-30 - 50°C
Nominal current330 - 330mA
Suitable for number of lamps2
Constant light output (CLO)No
Colour consistency (McAdam ellipse)SDCM3
Dimming DALIYes
Rated luminous flux according to IEC 62722-2-117800lm
Colour of lightWhite
Dimming phase cut-onNo
Dimming mains voltage modulationNo
Dimming programmableNo
Light distributorRefractor lens
Dimming potentiometer (integrated)No
Dimming phase cut-offNo
Dimming with push-buttonNo
Max. number of luminaires per miniature circuit breaker C1611
Dimming Touch and DimNo
Dimming LineSwitchNo
Dimming RFNo
Operation by BluetoothNo
Dimming manufacturer's proprietary systemNo
Max. number of luminaires per miniature circuit breaker B167
Dimming DSINo
Luminaire efficacy142lm/W
Suitable for auxiliary lampNo
No dim functionNo
Dimming Sine Wave ReductionNo
Dimming ZigbeeNo
Dimming DMXNo
Luminous flux adjustableContinuously variable
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
Colour temperature adjustableNo
Exchangeable control gearYes
Power factor0.9
Beam angle adjustableNo
Degree of protection (IP)IP65
Colour temperature4000 - 4000K
Max. system power125W
