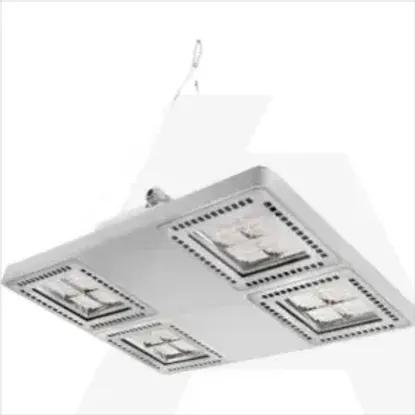

GWS4420BF840
Code: 1976998
Details
- •Luminaires
- •High bay luminaire
- •1 KOM
- •GEWISS
Technical specifications
With light sourceYes
Suitable for auxiliary lampNo
Suitable for number of lamps4
Mounting methodPendant
Voltage typeAC
Material housingPlastic
Nominal current330 - 330mA
Lamp typeLED not exchangeable
Nominal voltage220 - 240V
Type of control gearLED operating device current-controlled
Lamp holderNone
Colour housingGrey
Exchangeable control gearYes
With control gearYes
Dimming 1-10 VNo
Dimming 0-10 VNo
Dimming DALINo
Dimming phase cut-offNo
Dimming DMXNo
Dimming DSINo
Dimming mains voltage modulationNo
Dimming potentiometer (integrated)No
Dimming phase cut-onNo
Dimming LineSwitchNo
Dimming Sine Wave ReductionNo
Dimming programmableNo
Dimming RFNo
Dimming manufacturer's proprietary systemNo
Dimming ZigbeeNo
Dimming Touch and DimNo
Dimming with push-buttonNo
Light distributorFocal lens
Reflector colourSilver
No dim functionYes
Light sharingSymmetric
ReflectorHigh-gloss
Beam angleMedium beam 21-40°
Colour consistency (McAdam ellipse)SDCM3
Material reflectorPlastic
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
Degree of protection (IP)IP66
Emergency power supply integratedNo
Impact strengthIK08
Protection classI
Ball-proofYes
Rated ambient temperature according to IEC62722-2-1-30 - 50°C
Luminaire with limited surface temperature, sign "D“Yes
Suitable for emergency lightingNo
Filament test according to IEC 60695-2-11850 °C - 30 s
Max. system power253W
Luminaire efficacy155lm/W
Rated luminous flux according to IEC 62722-2-139200lm
Colour temperature4000 - 4000K
Colour of lightWhite
Colour rendering index CRI80-89
Photobiological safety according to EN 62471RG0
Power factor0.9
Constant light output (CLO)No
Colour temperature adjustableNo
Beam angle adjustableNo
Luminous flux adjustableNo
Width504mm
Height/depth114mm
Length700mm
Type of wiringEnding
Number of poles3
Connection typePush-in clamp
Conductor cross section1.5mm²
With protective coverYes
Max. number of luminaires per miniature circuit breaker B164
Operation by BluetoothNo
Max. number of luminaires per miniature circuit breaker C168
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
GWS4420BF840
Details
- Luminaires
- High bay luminaire
- 1 KOM
- GEWISS
DetailsTechnical specifications
Technical specifications
With light source
Suitable for auxiliary lamp
Suitable for number of lamps
4
Mounting method
Pendant
Voltage type
AC
Material housing
Plastic
Nominal current
330 .. 330mA
Lamp type
LED not exchangeable
Nominal voltage
220 .. 240V
Type of control gear
LED operating device current-controlled
Lamp holder
None
Colour housing
Grey
Exchangeable control gear
With control gear
Dimming 1-10 V
Dimming 0-10 V
Dimming DALI
Dimming phase cut-off
Dimming DMX
Dimming DSI
Dimming mains voltage modulation
Dimming potentiometer (integrated)
Dimming phase cut-on
Dimming LineSwitch
Dimming Sine Wave Reduction
Dimming programmable
Dimming RF
Dimming manufacturer's proprietary system
Dimming Zigbee
Dimming Touch and Dim
Dimming with push-button
Light distributor
Focal lens
Reflector colour
Silver
No dim function
Light sharing
Symmetric
Reflector
High-gloss
Beam angle
Medium beam 21-40°
Colour consistency (McAdam ellipse)
SDCM3
Material reflector
Plastic
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)
90%
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)
10%
Degree of protection (IP)
IP66
Emergency power supply integrated
Impact strength
IK08
Protection class
I
Ball-proof
Rated ambient temperature according to IEC62722-2-1
-30 .. 50°C
Luminaire with limited surface temperature, sign "D“
Suitable for emergency lighting
Filament test according to IEC 60695-2-11
850 °C - 30 s
Max. system power
253W
Luminaire efficacy
155lm/W
Rated luminous flux according to IEC 62722-2-1
39200lm
Colour temperature
4000 .. 4000K
Colour of light
White
Colour rendering index CRI
80-89
Photobiological safety according to EN 62471
RG0
Power factor
0.9
Constant light output (CLO)
Colour temperature adjustable
No
Beam angle adjustable
No
Luminous flux adjustable
No
Width
504mm
Height/depth
114mm
Length
700mm
Type of wiring
Ending
Number of poles
3
Connection type
Push-in clamp
Conductor cross section
1.5mm²
With protective cover
Max. number of luminaires per miniature circuit breaker B16
4
Operation by Bluetooth
Max. number of luminaires per miniature circuit breaker C16
8
