GWS4420BQ840 | SMART[4]HB 4M St.al.on/off HLO ELL.40K
Code: 1977007
ManufacturerGewiss
Catalog numberGWS4420BQ840
TypeHigh bay luminaire
CategoryHigh bay luminaire
EAN code8034035055874
Details
- •SMART[4]HB 4M ST.AL.ON/OFF HLO ELL.40K
- •Luminaires
- •High bay luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
ReflectorHigh-gloss
Protection classI

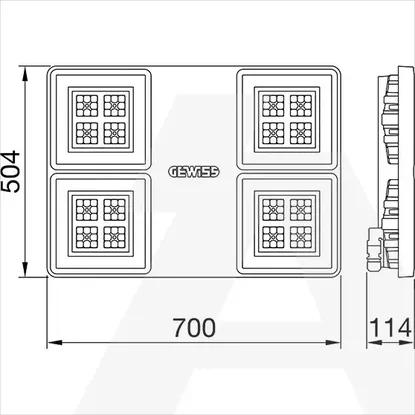

Width504mm
Mounting methodPendant
Lamp holderNone
Connection typePush-in clamp
Conductor cross section1.5mm²
Colour housingGrey
Length700mm
Type of control gearLED operating device current-controlled
Reflector colourSilver
Voltage typeAC
Emergency power supply integratedNo
Number of poles3
With control gearYes
Colour rendering index CRI80-89
Suitable for number of lamps4
Ball-proofYes
Luminaire with limited surface temperature, sign "D“Yes
Height/depth114mm
Suitable for emergency lightingNo
With protective coverYes
Impact strengthIK08
Light sharingSymmetric
Lamp typeLED not exchangeable
With light sourceYes
Nominal voltage220 - 240V
Material housingPlastic
Material reflectorPlastic
Nominal current330 - 330mA
Beam angleWide beam 41-80°
Colour consistency (McAdam ellipse)SDCM3
Filament test according to IEC 60695-2-11850 °C - 30 s
Dimming potentiometer (integrated)No
Dimming DALINo
Dimming DMXNo
Photobiological safety according to EN 62471RG0
Dimming manufacturer's proprietary systemNo
Rated ambient temperature according to IEC62722-2-1-30 - 50°C
Constant light output (CLO)No
Dimming programmableNo
Dimming LineSwitchNo
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming 0-10 VNo
Colour of lightWhite
Dimming mains voltage modulationNo
Rated luminous flux according to IEC 62722-2-136800lm
Dimming phase cut-onNo
Dimming phase cut-offNo
Type of wiringEnding
Dimming 1-10 VNo
Dimming ZigbeeNo
No dim functionYes
Light distributorRefractor lens
Dimming with push-buttonNo
Dimming Touch and DimNo
Luminaire efficacy145lm/W
Beam angle adjustableNo
Max. number of luminaires per miniature circuit breaker B164
Suitable for auxiliary lampNo
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
Power factor0.9
Max. number of luminaires per miniature circuit breaker C168
Luminous flux adjustableNo
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
Exchangeable control gearYes
Operation by BluetoothNo
Dimming DSINo
Colour temperature adjustableNo
Degree of protection (IP)IP66
Colour temperature4000 - 4000K
Max. system power253W
