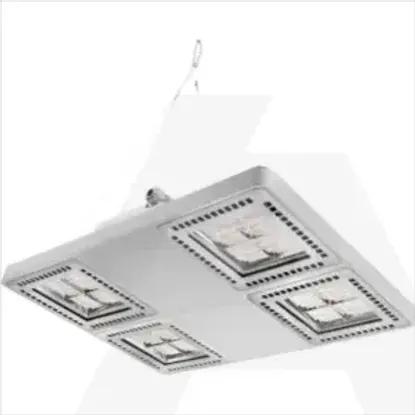

GWS4420BQ857 | SMART[4]HB 4M St.al.on/off HLO ELL.57K
Code: 1977008
ManufacturerGewiss
Catalog numberGWS4420BQ857
TypeHigh bay luminaire
CategoryHigh bay luminaire
EAN code8034035065149
Details
- •SMART[4]HB 4M ST.AL.ON/OFF HLO ELL.57K
- •Luminaires
- •High bay luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Colour housingGrey
Width504mm
ReflectorHigh-gloss
Mounting methodPendant
Protection classI
Connection typePush-in clamp
Lamp holderNone
Reflector colourSilver
Ball-proofYes
Lamp typeLED not exchangeable
Height/depth114mm
Suitable for emergency lightingNo
Colour rendering index CRI80-89
Material housingPlastic
Number of poles3
Length700mm
Voltage typeAC
Type of control gearLED operating device current-controlled
Conductor cross section1.5mm²
Light sharingSymmetric
Nominal voltage220 - 240V
Impact strengthIK08
Material reflectorPlastic
Suitable for number of lamps4
Emergency power supply integratedNo
Dimming DALINo
Rated ambient temperature according to IEC62722-2-1-30 - 50°C
Colour consistency (McAdam ellipse)SDCM3
Nominal current330 - 330mA
Filament test according to IEC 60695-2-11850 °C - 30 s
Type of wiringEnding
With control gearYes
Dimming 0-10 VNo
Rated luminous flux according to IEC 62722-2-136800lm
Dimming 1-10 VNo
Beam angleWide beam 41-80°
With protective coverYes
Photobiological safety according to EN 62471RG0
Dimming DMXNo
Colour of lightWhite
Constant light output (CLO)No
With light sourceYes
Luminaire with limited surface temperature, sign "D“Yes
Dimming LineSwitchNo
Dimming potentiometer (integrated)No
Dimming Touch and DimNo
Dimming manufacturer's proprietary systemNo
Dimming Sine Wave ReductionNo
Operation by BluetoothNo
Suitable for auxiliary lampNo
Dimming ZigbeeNo
Dimming phase cut-onNo
Dimming RFNo
Dimming DSINo
Dimming programmableNo
Luminaire efficacy145lm/W
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
Dimming mains voltage modulationNo
Max. number of luminaires per miniature circuit breaker B164
Dimming with push-buttonNo
No dim functionYes
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
Dimming phase cut-offNo
Light distributorRefractor lens
Colour temperature adjustableNo
Exchangeable control gearYes
Power factor0.9
Luminous flux adjustableNo
Beam angle adjustableNo
Max. number of luminaires per miniature circuit breaker C168
Degree of protection (IP)IP66
Colour temperature5700 - 5700K
Max. system power253W
