GWS4421BA840 | SMART[4]HB 4M St.al.dali HLO ARR.40K
Code: 1977010
ManufacturerGewiss
Catalog numberGWS4421BA840
TypeHigh bay luminaire
CategoryHigh bay luminaire
EAN code8034035041730
Details
- •SMART[4]HB 4M ST.AL.DALI HLO ARR.40K
- •Luminaires
- •High bay luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Mounting methodPendant
Type of control gearLED operating device current-controlled
Number of poles5
Colour housingGrey
Colour rendering index CRI80-89
Voltage typeAC
Ball-proofNo
Connection typePush-in clamp

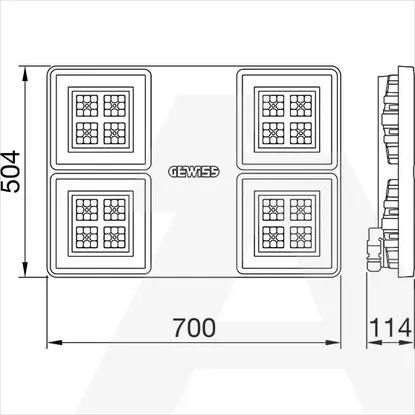

Height/depth114mm
Protection classI
ReflectorHigh-gloss
Length700mm
Lamp holderNone
Conductor cross section1.5mm²
Material housingPlastic
Width504mm
Suitable for emergency lightingNo
With light sourceYes
Reflector colourSilver
Luminaire with limited surface temperature, sign "D“Yes
Rated luminous flux according to IEC 62722-2-139600lm
With protective coverYes
Emergency power supply integratedNo
Material reflectorPlastic
With control gearYes
Light sharingSymmetric
Impact strengthIK08
Nominal voltage220 - 240V
Nominal current330 - 330mA
Beam angleExtreme wide beam >80°
Colour of lightWhite
Constant light output (CLO)No
Lamp typeLED not exchangeable
Suitable for number of lamps4
Rated ambient temperature according to IEC62722-2-1-30 - 50°C
Type of wiringEnding
Photobiological safety according to EN 62471RG0
Colour consistency (McAdam ellipse)SDCM3
Dimming 0-10 VNo
Dimming LineSwitchNo
Dimming DMXNo
Dimming 1-10 VNo
Dimming mains voltage modulationNo
Filament test according to IEC 60695-2-11850 °C - 30 s
Dimming DALIYes
Dimming phase cut-offNo
Dimming with push-buttonNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming ZigbeeNo
Dimming Touch and DimNo
Light distributorReflector
Dimming phase cut-onNo
No dim functionNo
Dimming manufacturer's proprietary systemNo
Dimming Sine Wave ReductionNo
Dimming programmableNo
Dimming DSINo
Max. number of luminaires per miniature circuit breaker B167
Suitable for auxiliary lampNo
Max. number of luminaires per miniature circuit breaker C1611
Operation by BluetoothNo
Luminaire efficacy157lm/W
Luminous flux adjustableContinuously variable
Power factor0.9
Colour temperature adjustableNo
Exchangeable control gearYes
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
Beam angle adjustableNo
Degree of protection (IP)IP66
Colour temperature4000 - 4000K
Max. system power253W
