Details
- •Luminaires
- •High bay luminaire
- •1 KOM
- •GEWISS
Technical specifications
Colour housingGrey
Mounting methodPendant
Lamp holderNone

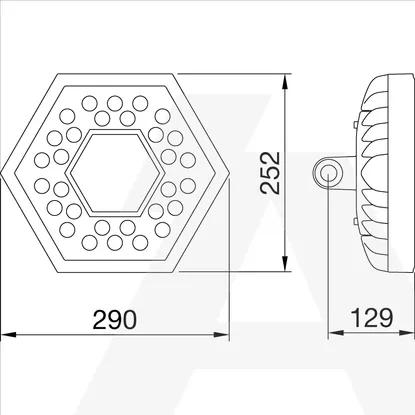

Width252mm
ReflectorNone
Conductor cross section1.5mm²
Protection classI
Connection typePush-in clamp
Type of control gearLED operating device current-controlled
Voltage typeAC
Colour rendering index CRI80-89
Emergency power supply integratedNo
Ball-proofNo
Suitable for number of lamps3
Suitable for emergency lightingNo
Beam angleExtreme wide beam >80°
Material housingAluminium
Max. system power52W
With protective coverNo
Lamp typeLED not exchangeable
Colour temperature4000 - 4000K
Nominal current600 - 600mA
Height/depth129mm
Degree of protection (IP)IP65
Nominal voltage220 - 240V
With control gearYes
Impact strengthIK07
With light sourceYes
Light sharingSymmetric
Number of poles5
Luminaire with limited surface temperature, sign "D“No
Material reflectorWithout reflector
Length290mm
Constant light output (CLO)No
Colour of lightWhite
Rated luminous flux according to IEC 62722-2-16700lm
Photobiological safety according to EN 62471RG0
Dimming DMXNo
Dimming LineSwitchNo
Dimming Sine Wave ReductionNo
Dimming RFNo
Dimming manufacturer's proprietary systemNo
Type of wiringEnding
Filament test according to IEC 60695-2-11650 °C - 30 s
Dimming phase cut-onNo
Dimming ZigbeeNo
Dimming phase cut-offNo
Dimming 0-10 VNo
Dimming Touch and DimNo
Dimming DALIYes
Colour consistency (McAdam ellipse)SDCM3
Dimming mains voltage modulationNo
Rated ambient temperature according to IEC62722-2-1-25 - 50°C
Dimming potentiometer (integrated)No
Dimming 1-10 VNo
Dimming programmableNo
Dimming with push-buttonNo
Dimming DSINo
Light distributorFocal lens
No dim functionNo
Luminaire efficacy129lm/W
Max. number of luminaires per miniature circuit breaker C1617
Operation by BluetoothNo
Luminous flux adjustableContinuously variable
Exchangeable control gearYes
Beam angle adjustableNo
Colour temperature adjustableNo
Power factor0.9
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
Max. number of luminaires per miniature circuit breaker B1610
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
Suitable for auxiliary lampNo
