Details
- •Luminaires
- •High bay luminaire
- •1 KOM
- •GEWISS
Technical specifications
Protection classI
Mounting methodPendant
Lamp holderNone
ReflectorNone
Conductor cross section1.5mm²
Connection typePush-in clamp

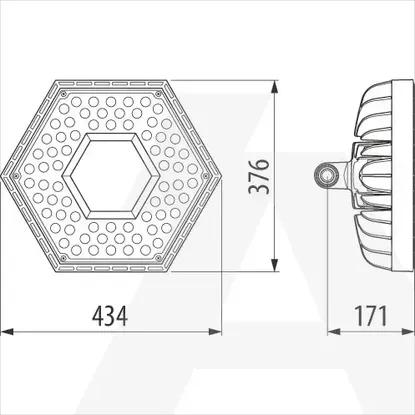

Width376mm
Type of control gearLED operating device current-controlled
Length434mm
Colour rendering index CRI80-89
Suitable for emergency lightingNo
Ball-proofNo
Height/depth171mm
Voltage typeAC
Light sharingSymmetric
Nominal voltage220 - 240V
Number of poles5
Material reflectorWithout reflector
Impact strengthIK07
Emergency power supply integratedNo
Material housingAluminium
Degree of protection (IP)IP65
Lamp typeLED not exchangeable
Colour housingGrey
Luminaire with limited surface temperature, sign "D“No
With light sourceYes
With control gearYes
Suitable for number of lamps6
With protective coverNo
Colour temperature4000 - 4000K
Nominal current600 - 600mA
Beam angleWide beam 41-80°
Colour of lightWhite
Max. system power125W
Constant light output (CLO)No
Photobiological safety according to EN 62471RG0
Type of wiringEnding
Dimming manufacturer's proprietary systemNo
Rated ambient temperature according to IEC62722-2-1-25 - 50°C
Dimming potentiometer (integrated)No
Colour consistency (McAdam ellipse)SDCM3
Dimming 0-10 VNo
Dimming DMXNo
Dimming programmableNo
Dimming phase cut-offNo
Filament test according to IEC 60695-2-11650 °C - 30 s
Dimming 1-10 VNo
Dimming phase cut-onNo
Dimming LineSwitchNo
Dimming DALIYes
Dimming RFNo
Dimming mains voltage modulationNo
Rated luminous flux according to IEC 62722-2-114400lm
Dimming Touch and DimNo
Dimming with push-buttonNo
Dimming ZigbeeNo
Dimming Sine Wave ReductionNo
Dimming DSINo
Max. number of luminaires per miniature circuit breaker C1613
Operation by BluetoothNo
Luminaire efficacy115lm/W
Light distributorFocal lens
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
Max. number of luminaires per miniature circuit breaker B168
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
Colour temperature adjustableNo
Beam angle adjustableNo
No dim functionNo
Luminous flux adjustableContinuously variable
Exchangeable control gearYes
Power factor0.9
Suitable for auxiliary lampNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
GWS6032GD
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- High bay luminaire
- 1 KOM
- GEWISS
DetailsTechnical specifications
Technical specifications
Protection class
I
Mounting method
Pendant
Lamp holder
None
Reflector
None
Conductor cross section
1.5mm²
Connection type
Push-in clamp
Width
376mm
Type of control gear
LED operating device current-controlled
Length
434mm
Colour rendering index CRI
80-89
Suitable for emergency lighting
Ball-proof
Height/depth
171mm
Voltage type
AC
Light sharing
Symmetric
Nominal voltage
220 .. 240V
Number of poles
5
Material reflector
Without reflector
Impact strength
IK07
Emergency power supply integrated
Material housing
Aluminium
Degree of protection (IP)
IP65
Lamp type
LED not exchangeable
Colour housing
Grey
Luminaire with limited surface temperature, sign "D“
With light source
With control gear
Suitable for number of lamps
6
With protective cover
Colour temperature
4000 .. 4000K
Nominal current
600 .. 600mA
Beam angle
Wide beam 41-80°
Colour of light
White
Max. system power
125W
Constant light output (CLO)
Photobiological safety according to EN 62471
RG0
Type of wiring
Ending
Dimming manufacturer's proprietary system
Rated ambient temperature according to IEC62722-2-1
-25 .. 50°C
Dimming potentiometer (integrated)
Colour consistency (McAdam ellipse)
SDCM3
Dimming 0-10 V
Dimming DMX
Dimming programmable
Dimming phase cut-off
Filament test according to IEC 60695-2-11
650 °C - 30 s
Dimming 1-10 V
Dimming phase cut-on
Dimming LineSwitch
Dimming DALI
Dimming RF
Dimming mains voltage modulation
Rated luminous flux according to IEC 62722-2-1
14400lm
Dimming Touch and Dim
Dimming with push-button
Dimming Zigbee
Dimming Sine Wave Reduction
Dimming DSI
Max. number of luminaires per miniature circuit breaker C16
13
Operation by Bluetooth
Luminaire efficacy
115lm/W
Light distributor
Focal lens
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)
90%
Max. number of luminaires per miniature circuit breaker B16
8
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)
10%
Colour temperature adjustable
No
Beam angle adjustable
No
No dim function
Luminous flux adjustable
Continuously variable
Exchangeable control gear
Power factor
0.9
Suitable for auxiliary lamp
