GWS6035GD30K | Esalite 16K ELL.3000K Plaf.gr.dali
Code: 1977097
ManufacturerGewiss
Catalog numberGWS6035GD30K
TypeHigh bay luminaire
CategoryHigh bay luminaire
EAN code8011564761650
Details
- •ESALITE 16K ELL.3000K PLAF.GR.DALI
- •Luminaires
- •High bay luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
ReflectorNone
Protection classI
Mounting methodPendant
Voltage typeAC

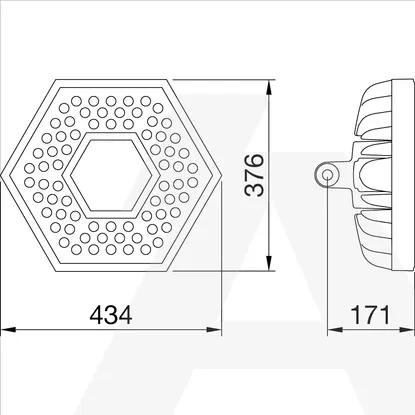

Width376mm
Material housingAluminium
Conductor cross section1.5mm²
Height/depth171mm
Connection typePush-in clamp
Type of control gearLED operating device current-controlled
Lamp holderNone
Colour housingGrey
Ball-proofNo
Number of poles5
Length434mm
Colour rendering index CRI80-89
Material reflectorWithout reflector
Suitable for emergency lightingNo
Lamp typeLED not exchangeable
Light sharingSymmetric
Nominal voltage220 - 240V
Emergency power supply integratedNo
With light sourceYes
Suitable for number of lamps6
With control gearYes
Impact strengthIK07
Beam angleWide beam 41-80°
Luminaire with limited surface temperature, sign "D“No
With protective coverNo
Colour consistency (McAdam ellipse)SDCM3
Type of wiringEnding
Nominal current600 - 600mA
Rated ambient temperature according to IEC62722-2-1-25 - 50°C
Colour of lightWhite
Dimming DALIYes
Photobiological safety according to EN 62471RG0
Constant light output (CLO)No
Rated luminous flux according to IEC 62722-2-113700lm
Dimming 0-10 VNo
Dimming DMXNo
Filament test according to IEC 60695-2-11650 °C - 30 s
Dimming 1-10 VNo
Dimming potentiometer (integrated)No
Dimming phase cut-offNo
Dimming LineSwitchNo
Dimming manufacturer's proprietary systemNo
Light distributorFocal lens
Dimming mains voltage modulationNo
Dimming programmableNo
Dimming Sine Wave ReductionNo
Dimming phase cut-onNo
Dimming RFNo
No dim functionNo
Luminaire efficacy110lm/W
Operation by BluetoothNo
Dimming DSINo
Suitable for auxiliary lampNo
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
Max. number of luminaires per miniature circuit breaker C1613
Dimming with push-buttonNo
Dimming ZigbeeNo
Max. number of luminaires per miniature circuit breaker B168
Dimming Touch and DimNo
Colour temperature adjustableNo
Beam angle adjustableNo
Luminous flux adjustableContinuously variable
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
Power factor0.9
Exchangeable control gearYes
Degree of protection (IP)IP65
Colour temperature3000 - 3000K
Max. system power125W
