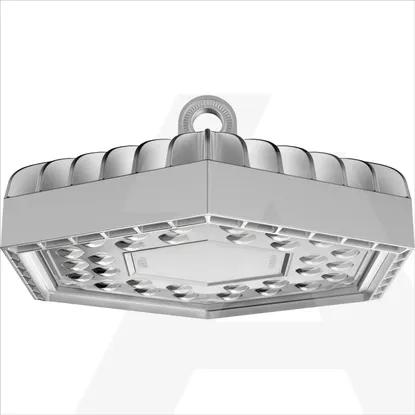

GWS6044GD
Code: 1977105
Details
- •Luminaires
- •High bay luminaire
- •1 KOM
- •GEWISS
Technical specifications
Material reflectorWithout reflector
Mounting methodPendant
Suitable for auxiliary lampNo
Suitable for number of lamps3
Lamp typeLED not exchangeable
With light sourceYes
Nominal voltage220 - 240V
Dimming 0-10 VNo
Nominal current700 - 700mA
Material housingAluminium
Type of control gearLED operating device current-controlled
Voltage typeAC
Lamp holderNone
Dimming 1-10 VNo
Colour housingGrey
With control gearYes
Exchangeable control gearYes
Dimming phase cut-offNo
Dimming DSINo
Dimming DALIYes
Dimming manufacturer's proprietary systemNo
Dimming potentiometer (integrated)No
Dimming phase cut-onNo
Dimming DMXNo
Dimming mains voltage modulationNo
Dimming RFNo
Dimming LineSwitchNo
Dimming programmableNo
Dimming Touch and DimNo
Dimming Sine Wave ReductionNo
Dimming ZigbeeNo
Dimming with push-buttonNo
Light sharingSymmetric
Light distributorFocal lens
Colour consistency (McAdam ellipse)SDCM3
Beam angleExtreme wide beam >80°
ReflectorNone
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
No dim functionNo
Degree of protection (IP)IP65
Protection classI
Filament test according to IEC 60695-2-11650 °C - 30 s
Ball-proofNo
Impact strengthIK07
Luminaire with limited surface temperature, sign "D“No
Suitable for emergency lightingNo
Emergency power supply integratedNo
Rated ambient temperature according to IEC62722-2-1-25 - 40°C
Max. system power148W
Rated luminous flux according to IEC 62722-2-118200lm
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
Luminaire efficacy123lm/W
Colour of lightWhite
Colour temperature4000 - 4000K
Colour rendering index CRI80-89
Power factor0.9
Photobiological safety according to EN 62471RG0
Constant light output (CLO)No
Colour temperature adjustableNo
Beam angle adjustableNo
Luminous flux adjustableContinuously variable
Height/depth171mm
Width376mm
Length434mm
Type of wiringEnding
Number of poles5
Conductor cross section1.5mm²
Connection typePush-in clamp
Operation by BluetoothNo
Max. number of luminaires per miniature circuit breaker C1613
Max. number of luminaires per miniature circuit breaker B168
With protective coverYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
