Details
- •Luminaires

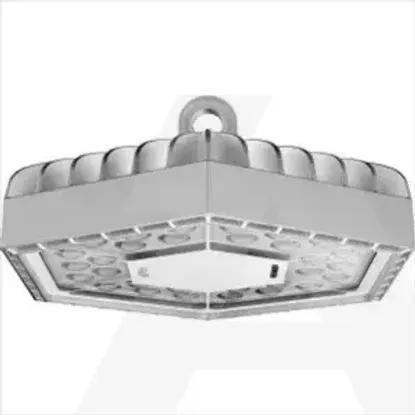

- •High bay luminaire
- •1 KOM
- •GEWISS
Technical specifications
Voltage typeAC
Protection classI
Connection typePush-in clamp
Width376mm
Length434mm
Ball-proofNo
Conductor cross section1.5mm²
Colour housingGrey
Type of control gearLED operating device current-controlled
Lamp holderNone
ReflectorNone
Colour rendering index CRI80-89
Height/depth171mm
Mounting methodPendant
Number of poles5
Suitable for emergency lightingNo
Nominal current600 - 600mA
Rated ambient temperature according to IEC62722-2-1-25 - 50°C
With control gearYes
Material housingAluminium
Material reflectorWithout reflector
Beam angleMedium beam 21-40°
Light sharingSymmetric
Impact strengthIK08
Rated luminous flux according to IEC 62722-2-112300lm
Emergency power supply integratedNo
With light sourceYes
Lamp typeLED not exchangeable
Photobiological safety according to EN 62471RG0
Luminaire with limited surface temperature, sign "D“No
Colour temperature3000 - 3000K
Type of wiringEnding
Max. system power125W
Colour of lightWhite
Constant light output (CLO)No
Colour consistency (McAdam ellipse)SDCM3
Suitable for number of lamps8
Degree of protection (IP)IP66
With protective coverNo
Nominal voltage220 - 240V
Dimming potentiometer (integrated)No
Dimming DALIYes
Dimming manufacturer's proprietary systemNo
Dimming phase cut-onNo
Dimming programmableNo
Dimming RFNo
Dimming DMXNo
Dimming 0-10 VNo
Operation by BluetoothNo
Dimming ZigbeeNo
Dimming Sine Wave ReductionNo
Max. number of luminaires per miniature circuit breaker B168
Light distributorFocal lens
Dimming phase cut-offNo
Max. number of luminaires per miniature circuit breaker C1613
Dimming DSINo
Dimming 1-10 VNo
Dimming mains voltage modulationNo
Suitable for auxiliary lampNo
Dimming Touch and DimNo
Dimming with push-buttonNo
Dimming LineSwitchNo
Luminaire efficacy98lm/W
Filament test according to IEC 60695-2-11None
No dim functionNo
Beam angle adjustableNo
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
Power factor0.9
Exchangeable control gearYes
Colour temperature adjustableNo
Luminous flux adjustableContinuously variable
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
