Details
- •Luminaires
- •High bay luminaire
- •1 M
- •GEWISS
Technical specifications
Voltage typeAC
Colour rendering index CRI80-89
Colour housingGrey
Material housingAluminium
Conductor cross section1.5mm²
ReflectorNone
Lamp holderNone
Type of control gearLED operating device current-controlled
Connection typePush-in clamp
Number of poles5
Mounting methodPendant

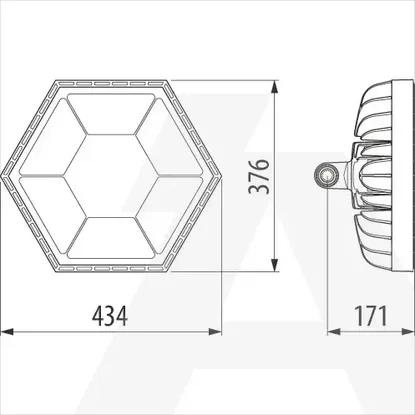

Width376mm
Ball-proofNo
Protection classI
Height/depth171mm
Lamp typeLED not exchangeable
Light sharingSymmetric
Suitable for emergency lightingNo
Length434mm
Emergency power supply integratedNo
Filament test according to IEC 60695-2-11None
Impact strengthIK08
Photobiological safety according to EN 62471RG0
Beam angleMedium beam 21-40°
Degree of protection (IP)IP66
Colour temperature3000 - 3000K
Suitable for number of lamps6
Max. system power148W
Constant light output (CLO)No
Luminaire with limited surface temperature, sign "D“No
Colour of lightWhite
Rated luminous flux according to IEC 62722-2-114400lm
Material reflectorWithout reflector
Colour consistency (McAdam ellipse)SDCM3
Type of wiringEnding
Dimming 0-10 VNo
With protective coverYes
Nominal current700 - 700mA
With light sourceYes
Rated ambient temperature according to IEC62722-2-1-25 - 40°C
Nominal voltage220 - 240V
Dimming 1-10 VNo
Dimming DALIYes
With control gearYes
Dimming potentiometer (integrated)No
Dimming DMXNo
No dim functionNo
Dimming manufacturer's proprietary systemNo
Dimming ZigbeeNo
Dimming DSINo
Dimming phase cut-offNo
Light distributorFocal lens
Dimming programmableNo
Dimming LineSwitchNo
Luminaire efficacy97lm/W
Dimming Touch and DimNo
Dimming mains voltage modulationNo
Dimming phase cut-onNo
Dimming Sine Wave ReductionNo
Dimming RFNo
Dimming with push-buttonNo
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
Max. number of luminaires per miniature circuit breaker C1613
Operation by BluetoothNo
Max. number of luminaires per miniature circuit breaker B168
Luminous flux adjustableContinuously variable
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
Colour temperature adjustableNo
Suitable for auxiliary lampNo
Beam angle adjustableNo
Exchangeable control gearYes
Power factor0.9
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
GWS6342GD30K
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- High bay luminaire
- 1 M
- GEWISS
DetailsTechnical specifications
Technical specifications
Voltage type
AC
Colour rendering index CRI
80-89
Colour housing
Grey
Material housing
Aluminium
Conductor cross section
1.5mm²
Reflector
None
Lamp holder
None
Type of control gear
LED operating device current-controlled
Connection type
Push-in clamp
Number of poles
5
Mounting method
Pendant
Width
376mm
Ball-proof
Protection class
I
Height/depth
171mm
Lamp type
LED not exchangeable
Light sharing
Symmetric
Suitable for emergency lighting
Length
434mm
Emergency power supply integrated
Filament test according to IEC 60695-2-11
None
Impact strength
IK08
Photobiological safety according to EN 62471
RG0
Beam angle
Medium beam 21-40°
Degree of protection (IP)
IP66
Colour temperature
3000 .. 3000K
Suitable for number of lamps
6
Max. system power
148W
Constant light output (CLO)
Luminaire with limited surface temperature, sign "D“
Colour of light
White
Rated luminous flux according to IEC 62722-2-1
14400lm
Material reflector
Without reflector
Colour consistency (McAdam ellipse)
SDCM3
Type of wiring
Ending
Dimming 0-10 V
With protective cover
Nominal current
700 .. 700mA
With light source
Rated ambient temperature according to IEC62722-2-1
-25 .. 40°C
Nominal voltage
220 .. 240V
Dimming 1-10 V
Dimming DALI
With control gear
Dimming potentiometer (integrated)
Dimming DMX
No dim function
Dimming manufacturer's proprietary system
Dimming Zigbee
Dimming DSI
Dimming phase cut-off
Light distributor
Focal lens
Dimming programmable
Dimming LineSwitch
Luminaire efficacy
97lm/W
Dimming Touch and Dim
Dimming mains voltage modulation
Dimming phase cut-on
Dimming Sine Wave Reduction
Dimming RF
Dimming with push-button
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)
90%
Max. number of luminaires per miniature circuit breaker C16
13
Operation by Bluetooth
Max. number of luminaires per miniature circuit breaker B16
8
Luminous flux adjustable
Continuously variable
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)
10%
Colour temperature adjustable
No
Suitable for auxiliary lamp
Beam angle adjustable
No
Exchangeable control gear
Power factor
0.9
