GWS6385GD30K | Esalite 48K ELL.3000K Plaf+v.gr.dali
Code: 1977369
ManufacturerGewiss
Catalog numberGWS6385GD30K
TypeHigh bay luminaire
CategoryHigh bay luminaire
EAN code8011564759787
Details
- •ESALITE 48K ELL.3000K PLAF+V.GR.DALI
- •Luminaires
- •High bay luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
ReflectorNone
Connection typePush-in clamp
Protection classI
Voltage typeAC
Mounting methodPendant

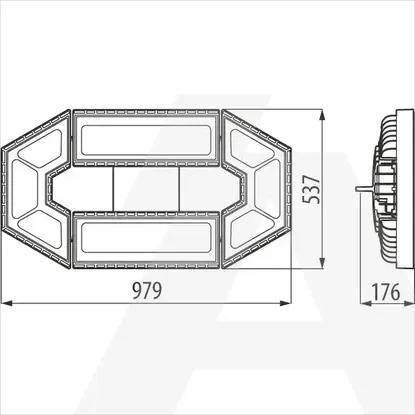

Width536mm
Conductor cross section1.5mm²
Colour housingGrey
Colour rendering index CRI80-89
Number of poles5
Type of control gearLED operating device current-controlled
Ball-proofNo
Lamp holderNone
Light sharingSymmetric
Suitable for emergency lightingNo
With protective coverYes
Impact strengthIK08
Material housingAluminium
Rated luminous flux according to IEC 62722-2-140400lm
Height/depth176mm
Nominal current900 - 900mA
Luminaire with limited surface temperature, sign "D“No
Nominal voltage220 - 240V
With control gearYes
Suitable for number of lamps8
Beam angleWide beam 41-80°
Emergency power supply integratedNo
Material reflectorWithout reflector
Lamp typeLED not exchangeable
With light sourceYes
Length979mm
Constant light output (CLO)No
Colour consistency (McAdam ellipse)SDCM3
Type of wiringEnding
Colour of lightWhite
Rated ambient temperature according to IEC62722-2-1-25 - 50°C
Photobiological safety according to EN 62471RG0
Dimming phase cut-onNo
Dimming 0-10 VNo
Dimming manufacturer's proprietary systemNo
Dimming Touch and DimNo
Filament test according to IEC 60695-2-11None
Dimming mains voltage modulationNo
Dimming with push-buttonNo
Dimming phase cut-offNo
Dimming ZigbeeNo
Dimming RFNo
Dimming DALIYes
Dimming potentiometer (integrated)No
Dimming Sine Wave ReductionNo
Dimming LineSwitchNo
Dimming programmableNo
Dimming 1-10 VNo
Dimming DMXNo
Operation by BluetoothNo
Light distributorFocal lens
Luminaire efficacy96lm/W
Dimming DSINo
No dim functionNo
Suitable for auxiliary lampNo
Luminous flux adjustableContinuously variable
Max. number of luminaires per miniature circuit breaker C163
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
Colour temperature adjustableNo
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
Max. number of luminaires per miniature circuit breaker B162
Exchangeable control gearYes
Power factor0.9
Beam angle adjustableNo
Degree of protection (IP)IP66
Colour temperature3000 - 3000K
Max. system power420W
