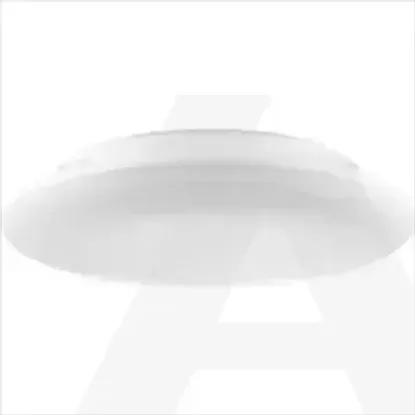

GWF1316MA840 | Elia CL M2 25W 840 Opal Sensor EM.
Code: 1977428
ManufacturerGewiss
Catalog numberGWF1316MA840
TypeCeiling-/wall luminaire
CategoryCeiling-/wall luminaire
EAN code8034035024931
Details
- •ELIA CL M2 OPAL DIFF 40K ST.ALONE MW EM
- •Luminaires
- •Ceiling-/wall luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Protection classII
Lamp typeLED not exchangeable
With movement sensorYes
Connection typeScrewed terminal
Number of poles2
With light sensorNo
Colour rendering index CRI80-89
Type of control gearLED operating device current-controlled
Material housingPlastic
Height/depth58mm
Type of gridNone
Suitable for wall mountingYes
Suitable for light line configurationNo
Voltage typeAC
Suitable for suspended mountingNo
Material coverPlastic, structured
Impact strengthIK08
Outer diameter300mm
Suitable for emergency lightingYes
Light sharingSymmetric
Light outletDirect
Luminaire with limited surface temperature, sign "D“No
Covering of the luminaire with thermally insulating material possibleNo
Suitable for workplace according to EN 12464-1No
With control gearYes
Rated luminous flux according to IEC 62722-2-12600lm
Degree of protection (IP)IP20
With air slotsNo
Constant light output (CLO)No
Colour consistency (McAdam ellipse)SDCM3
IFTTT support availableNo
With light sourceYes
Suitable for built-in mountingNo
Colour temperature4000 - 4000K
Colour of lightWhite
Max. system power25W
Type of wiringEnding
Suitable for number of lamps1
Suitable for surface mountingYes
Beam angleExtreme wide beam >80°
Rated ambient temperature according to IEC62722-2-10 - 45°C
Emergency power supply integratedYes
Filament test according to IEC 60695-2-11750 °C - 30 s
Photobiological safety according to EN 62471RG0
Dimming 0-10 VNo
Light distributorDiffuser lens/optic/panel
Dimming mains voltage modulationNo
Dimming potentiometer (integrated)No
Dimming 1-10 VNo
Dimming DMXNo
Dimming RFNo
No dim functionYes
Dimming phase cut-onNo
Dimming DSINo
Dimming DALINo
Luminaire efficacy104lm/W
Dimming ZigbeeNo
Dimming programmableNo
Dimming LineSwitchNo
Dimming with push-buttonNo
Dimming phase cut-offNo
Dimming Touch and DimNo
Dimming Sine Wave ReductionNo
Max. number of luminaires per miniature circuit breaker C1685
Compatible with Amazon AlexaNo
Operation by BluetoothNo
Compatible with Apple HomeKitNo
Dimming manufacturer's proprietary systemNo
Compatible with Google AssistantNo
Dimming DALI-2No
Suitable for ceiling mountingYes
Exchangeable control gearNo
Compatible with CasambiNo
Luminous flux adjustableNo
Beam angle adjustableNo
Colour temperature adjustableNo
Power factor0.9
Surface protection housingPlastic-coated
Colour housingWhite
Nominal voltage220 - 240V
