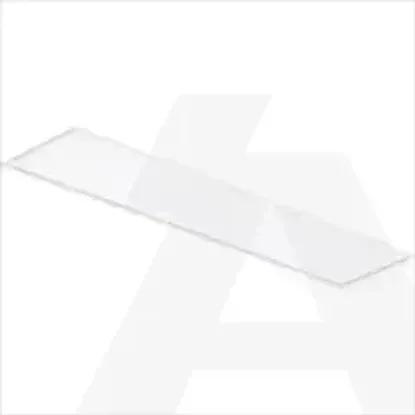

GWF1610LA940 | Elia PL M1 30X120 940 Opal On/off
Code: 1977432
ManufacturerGewiss
Catalog numberGWF1610LA940
TypeCeiling-/wall luminaire
CategoryCeiling-/wall luminaire
EAN code8034035026195
Details
- •ELIA PL M1 OPAL 40K ON/OFF CRI90
- •Luminaires
- •Ceiling-/wall luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Voltage typeAC
Connection typeScrewed terminal
Width1195mm
Protection classII
Type of control gearLED operating device current-controlled
With movement sensorNo
Suitable for wall mountingNo
Colour rendering index CRI90-100
Lamp typeLED not exchangeable
Material coverPlastic, structured
With light sensorNo
Light sharingSymmetric
Suitable for suspended mountingNo
Suitable for emergency lightingNo
Length295mm
Suitable for light line configurationNo
Impact strengthIK03
Material housingAluminium
Covering of the luminaire with thermally insulating material possibleNo
Suitable for number of lamps1
Light outletDirect
Luminaire with limited surface temperature, sign "D“No
Emergency power supply integratedNo
With light sourceYes
Number of poles2
Type of gridNone
Degree of protection (IP)IP20
Height/depth9mm
Max. system power33W
IFTTT support availableNo
Beam angleExtreme wide beam >80°
Dimming 1-10 VNo
Suitable for built-in mountingNo
Dimming DMXNo
Colour of lightWhite
Filament test according to IEC 60695-2-11650 °C - 30 s
Colour consistency (McAdam ellipse)SDCM3
Dimming potentiometer (integrated)No
Photobiological safety according to EN 62471RG0
Suitable for workplace according to EN 12464-1No
Suitable for surface mountingNo
With air slotsNo
Dimming mains voltage modulationNo
Dimming LineSwitchNo
Constant light output (CLO)No
Dimming DALINo
Colour temperature4000 - 4000K
Rated luminous flux according to IEC 62722-2-13600lm
Dimming 0-10 VNo
Dimming manufacturer's proprietary systemNo
With control gearYes
Rated ambient temperature according to IEC62722-2-1-20 - 45°C
Type of wiringEnding
Dimming phase cut-onNo
Dimming with push-buttonNo
Dimming RFNo
Dimming phase cut-offNo
Light distributorDiffuser lens/optic/panel
Dimming ZigbeeNo
No dim functionYes
Dimming Touch and DimNo
Dimming Sine Wave ReductionNo
Dimming programmableNo
Unified Glare Ratio (UGR)22
Operation by BluetoothNo
Colour temperature adjustableNo
Compatible with Apple HomeKitNo
Exchangeable control gearNo
Dimming DALI-2No
Beam angle adjustableNo
Suitable for ceiling mountingYes
Compatible with Amazon AlexaNo
Luminous flux adjustableNo
Luminaire efficacy109lm/W
Max. number of luminaires per miniature circuit breaker C1630
Compatible with CasambiNo
Compatible with Google AssistantNo
Dimming DSINo
Power factor0.9
Surface protection housingPowder coating
Colour housingWhite
Nominal voltage220 - 240V
