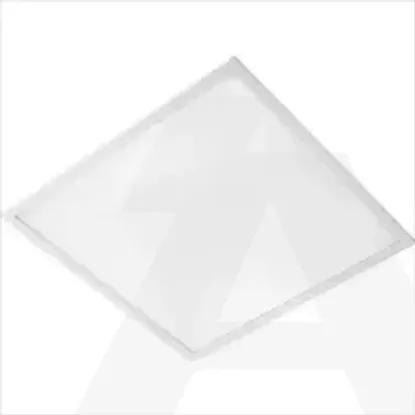

GWF1610NA840 | Elia PL M3 62X62 840 Opal On/off
Code: 1977446
ManufacturerGewiss
Catalog numberGWF1610NA840
TypeCeiling-/wall luminaire
CategoryCeiling-/wall luminaire
EAN code8034035025938
Details
- •ELIA PL M3 OPAL 40K ON/OFF CRI80
- •Luminaires
- •Ceiling-/wall luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Width620mm
Protection classII
Connection typeScrewed terminal
Suitable for wall mountingNo
Type of gridNone
Type of control gearLED operating device current-controlled
With movement sensorNo
Colour rendering index CRI80-89
Voltage typeAC
Lamp typeLED not exchangeable
Suitable for built-in mountingNo
Luminaire with limited surface temperature, sign "D“No
Material housingAluminium
Height/depth9mm
With light sensorNo
Length620mm
Number of poles2
Degree of protection (IP)IP20
Suitable for number of lamps1
Impact strengthIK03
Light sharingSymmetric
With light sourceYes
Material coverPlastic, structured
Emergency power supply integratedNo
Suitable for emergency lightingNo
Beam angleExtreme wide beam >80°
Suitable for workplace according to EN 12464-1No
With control gearYes
Suitable for surface mountingNo
Light outletDirect
Suitable for light line configurationNo
Suitable for suspended mountingNo
Covering of the luminaire with thermally insulating material possibleNo
Dimming Sine Wave ReductionNo
Dimming potentiometer (integrated)No
With air slotsNo
Rated luminous flux according to IEC 62722-2-14300lm
IFTTT support availableNo
Max. system power33W
Colour temperature4000 - 4000K
Type of wiringEnding
Dimming manufacturer's proprietary systemNo
Photobiological safety according to EN 62471RG0
Dimming DALINo
Dimming programmableNo
Rated ambient temperature according to IEC62722-2-1-20 - 45°C
Dimming 1-10 VNo
Dimming 0-10 VNo
Dimming phase cut-offNo
Constant light output (CLO)No
Colour consistency (McAdam ellipse)SDCM3
Dimming DMXNo
Colour of lightWhite
Filament test according to IEC 60695-2-11650 °C - 30 s
Dimming RFNo
Dimming phase cut-onNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming Touch and DimNo
Light distributorDiffuser lens/optic/panel
Dimming with push-buttonNo
Dimming ZigbeeNo
Dimming DSINo
Beam angle adjustableNo
Max. number of luminaires per miniature circuit breaker C1630
Exchangeable control gearNo
Compatible with Google AssistantNo
Compatible with CasambiNo
Compatible with Apple HomeKitNo
Surface protection housingPowder coating
Suitable for ceiling mountingYes
Colour temperature adjustableNo
Compatible with Amazon AlexaNo
Operation by BluetoothNo
No dim functionYes
Luminous flux adjustableNo
Power factor0.9
Luminaire efficacy130lm/W
Dimming DALI-2No
Unified Glare Ratio (UGR)22
Colour housingWhite
Nominal voltage220 - 240V
