GWF1611MN930 | Elia PL M2 60X60 930 Micropr. DALI
Code: 1977467
ManufacturerGewiss
Catalog numberGWF1611MN930
TypeCeiling-/wall luminaire
CategoryCeiling-/wall luminaire
EAN code8034035025853
Details
- •ELIA PL M2 MICROP.30K DALI CRI90
- •Luminaires
- •Ceiling-/wall luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Protection classII
Connection typeScrewed terminal

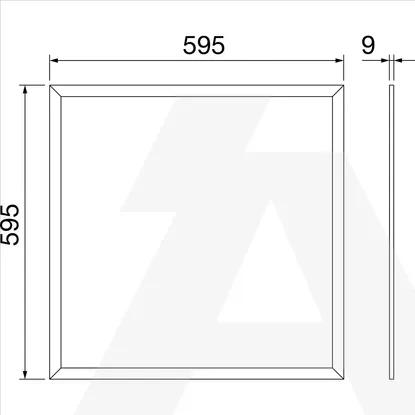

Width595mm
Type of control gearLED operating device current-controlled
With movement sensorNo
Number of poles2
Type of gridNone
With light sensorNo
Suitable for suspended mountingNo
Colour rendering index CRI90-100
Length595mm
Suitable for wall mountingNo
Voltage typeAC
Lamp typeLED not exchangeable
Height/depth9mm
Material housingAluminium
Suitable for light line configurationNo
Suitable for emergency lightingNo
Degree of protection (IP)IP20
Light outletDirect
Light sharingSymmetric
Covering of the luminaire with thermally insulating material possibleNo
Impact strengthIK03
Luminaire with limited surface temperature, sign "D“No
With light sourceYes
Material coverPlastic, structured
Emergency power supply integratedNo
Suitable for workplace according to EN 12464-1Yes
Beam angleExtreme wide beam >80°
With control gearYes
Suitable for number of lamps1
Rated luminous flux according to IEC 62722-2-13300lm
Colour of lightWhite
Suitable for built-in mountingNo
Colour temperature3000 - 3000K
Suitable for surface mountingNo
With air slotsNo
Max. system power33W
IFTTT support availableNo
Colour consistency (McAdam ellipse)SDCM3
Type of wiringEnding
Constant light output (CLO)No
Dimming 0-10 VNo
Rated ambient temperature according to IEC62722-2-1-20 - 45°C
Filament test according to IEC 60695-2-11650 °C - 30 s
Dimming DMXNo
Photobiological safety according to EN 62471RG0
Dimming LineSwitchNo
Dimming 1-10 VNo
Dimming potentiometer (integrated)No
Dimming DALIYes
Dimming manufacturer's proprietary systemNo
Dimming mains voltage modulationNo
Dimming programmableNo
Dimming ZigbeeNo
Dimming RFNo
Dimming phase cut-offNo
Dimming Touch and DimNo
Dimming Sine Wave ReductionNo
Dimming phase cut-onNo
No dim functionNo
Luminaire efficacy100lm/W
Unified Glare Ratio (UGR)19
Dimming with push-buttonNo
Light distributorDiffuser lens/optic/panel
Dimming DSINo
Operation by BluetoothNo
Max. number of luminaires per miniature circuit breaker C1630
Compatible with Google AssistantNo
Colour temperature adjustableNo
Compatible with Apple HomeKitNo
Compatible with CasambiNo
Luminous flux adjustableNo
Compatible with Amazon AlexaNo
Exchangeable control gearNo
Beam angle adjustableNo
Dimming DALI-2No
Surface protection housingPowder coating
Power factor0.9
Suitable for ceiling mountingYes
Colour housingWhite
Nominal voltage220 - 240V
