GWF1611NA930 | Elia PL M3 62X62 930 Opal DALI
Code: 1977471
ManufacturerGewiss
Catalog numberGWF1611NA930
TypeCeiling-/wall luminaire
CategoryCeiling-/wall luminaire
EAN code8034035026058
Details
- •ELIA PL M3 OPAL 30K DALI CRI90
- •Luminaires
- •Ceiling-/wall luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Protection classII
Connection typeScrewed terminal

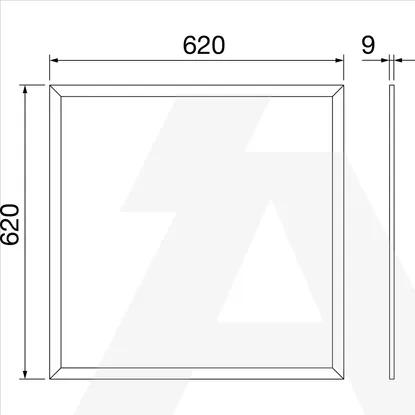

Width620mm
Height/depth9mm
Type of gridNone
With light sensorNo
Colour rendering index CRI90-100
Number of poles2
Suitable for wall mountingNo
Voltage typeAC
Suitable for suspended mountingNo
Length620mm
With movement sensorNo
Type of control gearLED operating device current-controlled
Material housingAluminium
Lamp typeLED not exchangeable
Suitable for light line configurationNo
Light sharingSymmetric
Colour temperature3000 - 3000K
Suitable for emergency lightingNo
Max. system power33W
Suitable for number of lamps1
Beam angleExtreme wide beam >80°
Rated luminous flux according to IEC 62722-2-13300lm
Suitable for surface mountingNo
Colour of lightWhite
Degree of protection (IP)IP20
With control gearYes
Suitable for built-in mountingNo
Suitable for workplace according to EN 12464-1No
Impact strengthIK03
Covering of the luminaire with thermally insulating material possibleNo
With light sourceYes
Emergency power supply integratedNo
Material coverPlastic, structured
Light outletDirect
With air slotsNo
Luminaire with limited surface temperature, sign "D“No
IFTTT support availableNo
Dimming 0-10 VNo
Dimming DALIYes
Dimming LineSwitchNo
Dimming DMXNo
Dimming mains voltage modulationNo
Dimming phase cut-offNo
Dimming potentiometer (integrated)No
Rated ambient temperature according to IEC62722-2-1-20 - 45°C
Filament test according to IEC 60695-2-11650 °C - 30 s
Dimming manufacturer's proprietary systemNo
Dimming 1-10 VNo
Photobiological safety according to EN 62471RG0
Type of wiringEnding
Constant light output (CLO)No
Colour consistency (McAdam ellipse)SDCM3
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming ZigbeeNo
Dimming phase cut-onNo
Light distributorDiffuser lens/optic/panel
Dimming programmableNo
No dim functionNo
Dimming Touch and DimNo
Dimming with push-buttonNo
Luminaire efficacy100lm/W
Dimming DSINo
Operation by BluetoothNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Unified Glare Ratio (UGR)22
Compatible with Apple HomeKitNo
Colour temperature adjustableNo
Max. number of luminaires per miniature circuit breaker C1630
Dimming DALI-2No
Luminous flux adjustableNo
Beam angle adjustableNo
Exchangeable control gearNo
Compatible with CasambiNo
Surface protection housingPowder coating
Suitable for ceiling mountingYes
Power factor0.9
Colour housingWhite
Nominal voltage220 - 240V
