Details
- •Luminaires
- •Luminaire for streets and places
- •1 KOM
- •GEWISS
Technical specifications
Mounting methodPost top
Colour of lightWhite
Colour temperature4000 - 4000K
Colour rendering index CRI70-79
Lamp typeLED not exchangeable
With light sourceYes
Suitable for number of lamps3
Lamp holderNone
Power factor0.9
Surface protectionPowder coating

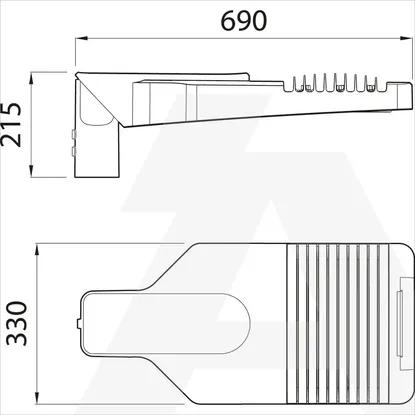

Width330mm
Height/depth215mm
Material housingAluminium
Length690mm
Type of wiringEnding
Dimming Sine Wave ReductionNo
Degree of protection (IP)IP66
Dimming phase cut-offNo
Dimming mains voltage modulationNo
Dimming phase cut-onNo
Dimming ZigbeeNo
Colour consistency (McAdam ellipse)SDCM5
Adjustable opticsNo
Dimming manufacturer's proprietary systemNo
Dimming programmableNo
Dimming RFNo
Colour housingGrey
Dimming with push-buttonNo
Protection classII
Material coverGlass structured
Nominal current1000 - 1000mA
Dimming 1-10 VYes
With control gearYes
Nominal voltage220 - 240V
Type of control gearLED operating device current-controlled
Dimming DALINo
Dimming DSINo
Dimming DMXNo
Dimming 0-10 VNo
Voltage typeAC
Dimming LineSwitchNo
Dimming potentiometer (integrated)No
Exchangeable control gearYes
Number of poles2
Conductor cross section2.5mm²
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Connection typeScrewed terminal
Compatible with Amazon AlexaNo
Operation by BluetoothNo
Type of connection for sensor/communication moduleOther
IFTTT support availableNo
With light sensorNo
With radio controlNo
Dimming Touch and DimNo
No dim functionNo
Impact strengthIK08
Suitable for spigot size42 - 76mm
Light distributorReflector
Luminaire with limited surface temperature, sign "D“No
Rated ambient temperature according to IEC62722-2-1-25 - 40°C
Remote controlNone
With connection cableNo
Constant light output (CLO)No
With light regulation program controlNo
Max. system power111W
Rated luminous flux according to IEC 62722-2-114800lm
Luminaire efficacy133lm/W
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
GWR5213M | Road 5 MED.DIMM.3M 4000K 1A Opt.w
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Luminaire for streets and places
- 1 KOM
- GEWISS
DetailsTechnical specifications
Technical specifications
Mounting method
Post top
Colour of light
White
Colour temperature
4000 .. 4000K
Colour rendering index CRI
70-79
Lamp type
LED not exchangeable
With light source
Suitable for number of lamps
3
Lamp holder
None
Power factor
0.9
Surface protection
Powder coating
Width
330mm
Height/depth
215mm
Material housing
Aluminium
Length
690mm
Type of wiring
Ending
Dimming Sine Wave Reduction
Degree of protection (IP)
IP66
Dimming phase cut-off
Dimming mains voltage modulation
Dimming phase cut-on
Dimming Zigbee
Colour consistency (McAdam ellipse)
SDCM5
Adjustable optics
Dimming manufacturer's proprietary system
Dimming programmable
Dimming RF
Colour housing
Grey
Dimming with push-button
Protection class
II
Material cover
Glass structured
Nominal current
1000 .. 1000mA
Dimming 1-10 V
With control gear
Nominal voltage
220 .. 240V
Type of control gear
LED operating device current-controlled
Dimming DALI
Dimming DSI
Dimming DMX
Dimming 0-10 V
Voltage type
AC
Dimming LineSwitch
Dimming potentiometer (integrated)
Exchangeable control gear
Number of poles
2
Conductor cross section
2.5mm²
Compatible with Apple HomeKit
Compatible with Google Assistant
Connection type
Screwed terminal
Compatible with Amazon Alexa
Operation by Bluetooth
Type of connection for sensor/communication module
Other
IFTTT support available
With light sensor
With radio control
Dimming Touch and Dim
No dim function
Impact strength
IK08
Suitable for spigot size
42 .. 76mm
Light distributor
Reflector
Luminaire with limited surface temperature, sign "D“
Rated ambient temperature according to IEC62722-2-1
-25 .. 40°C
Remote control
None
With connection cable
Constant light output (CLO)
With light regulation program control
Max. system power
111W
Rated luminous flux according to IEC 62722-2-1
14800lm
Luminaire efficacy
133lm/W
