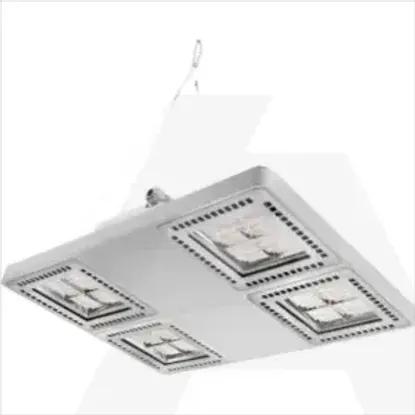

GWR5214M30K | Road 5 MED.DIMM.4M 3000K 1A Opt.w
Code: 1977793
ManufacturerGewiss
Catalog numberGWR5214M30K
TypeHigh bay luminaire
CategoryHigh bay luminaire
EAN code8034035057557
Details
- •ROAD5 MEDI WIDE 4M 3000K 1,0A CL2 1-10V
- •Luminaires
- •High bay luminaire
- •Minimum order quantity: 1 pcs
- •GEWISS
Technical specifications
Mounting methodPendant
Lamp holderNone
Connection typePush-in clamp
Protection classI
Conductor cross section1.5mm²
ReflectorHigh-gloss
Width504mm
Suitable for emergency lightingNo
Lamp typeLED not exchangeable
Voltage typeAC
Length700mm
Type of control gearLED operating device current-controlled
Colour rendering index CRI80-89
Height/depth114mm
Impact strengthIK08
With protective coverYes
Light sharingSymmetric
Colour housingGrey
Ball-proofNo
With light sourceYes
Material housingPlastic
Luminaire with limited surface temperature, sign "D“Yes
Emergency power supply integratedNo
With control gearYes
Reflector colourSilver
Beam angleWide beam 41-80°
Nominal current330 - 330mA
Material reflectorPlastic
Number of poles5
Nominal voltage220 - 240V
Suitable for number of lamps4
Dimming DMXNo
Dimming 0-10 VNo
Rated ambient temperature according to IEC62722-2-1-30 - 50°C
Filament test according to IEC 60695-2-11850 °C - 30 s
Colour consistency (McAdam ellipse)SDCM3
Dimming 1-10 VNo
Colour of lightWhite
Dimming LineSwitchNo
Dimming programmableNo
Type of wiringThrough wiring included
Dimming phase cut-offNo
Dimming ZigbeeNo
Dimming mains voltage modulationNo
Rated luminous flux according to IEC 62722-2-139600lm
Constant light output (CLO)No
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming manufacturer's proprietary systemNo
Photobiological safety according to EN 62471RG0
Dimming DALIYes
Dimming RFNo
Dimming potentiometer (integrated)No
Dimming phase cut-onNo
Dimming DSINo
Luminaire efficacy157lm/W
Dimming with push-buttonNo
Light distributorRefractor lens
Max. number of luminaires per miniature circuit breaker C1611
No dim functionNo
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq)90%
Luminous flux adjustableContinuously variable
Suitable for auxiliary lampNo
Beam angle adjustableNo
Exchangeable control gearYes
Colour temperature adjustableNo
Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq)10%
Power factor0.9
Max. number of luminaires per miniature circuit breaker B167
Operation by BluetoothNo
Degree of protection (IP)IP66
Colour temperature4000 - 4000K
Max. system power253W
