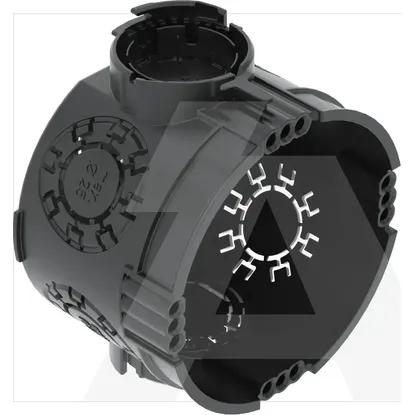

2003700 | UG 46
Code: 1978601
Details
- •Connection devices
- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •OBO
Technical specifications
Provided with revolving ringNo
ConnectableNo
Length-mm
Width-mm
Internal depth-mm
For number of electric fittings-
Suitable for wall/board thicknessmm
Number of non-adjustable device fixing lugs-
Number of adjustable device fixing lugs-
Pipe locking optionalNo
Pipe lockingNo
Suitable for cable diameter- - -mm
Number of included spouts-
Transparent coverNo
SealableNo
With screeningNo
Clamp position fixedNo
With partition panelNo
Number of poles of the clamp-
Luminaire hook mountingNo
Compliant with BS 4662No
Air tightNo
Max. conductor cross section-mm²
Equipped withNone
Mounting switching equipmentScrew or spread out
Construction typeBuilt-in installation box (device box)
ShapeRound
Diameter60mm
ModelSingle
Housing feed-through by step membraneNo
With screwsNo
Housing feed-through by nozzleNo
Depth46 - 46mm
Housing feed-through by break-out openingYes
Inlet from the rearYes
Halogen freeYes
MaterialPlastic
Number of inlets7
ColourBlack
Degree of protection (IP)IP30
Housing feed-through by seal membraneNo
For tube diameter20/25 mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
