Details
- •Connection devices
- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •OBO
Technical specifications
ColourOrange
Width-mm
Mounting methodHollow wall
Mounting switching equipmentScrewing
ConnectableNo
Construction typeBuilt-in installation box (device box)
ModelSingle
Diameter68mm
Halogen freeYes
Number of inlets10
SealableNo
Length-mm
Cover attachmentScrewed
For number of electric fittings1
MaterialPlastic
Internal depth-mm
ShapeRound
With screwsYes
With screeningNo
Max. conductor cross section-mm²
Air tightNo
Luminaire hook mountingNo
Depth61 - 61mm
Suitable for cable diameter- - -mm
Degree of protection (IP)IP30
Pipe lockingNo
Number of included spouts-
With partition panelNo
For tube diameter20/25 mm
NozzleOther
Number of poles of the clamp-
Inlet from the rearNo
Pipe locking optionalNo
Provided with revolving ringNo
Housing feed-through by seal membraneNo
Housing feed-through by nozzleNo
Housing feed-through by step membraneNo
Clamp position fixedNo
Housing feed-through by break-out openingYes
Compliant with BS 4662No
Number of non-adjustable device fixing lugs-
Number of adjustable device fixing lugs-
Transparent coverNo
Suitable for wall/board thicknessmm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

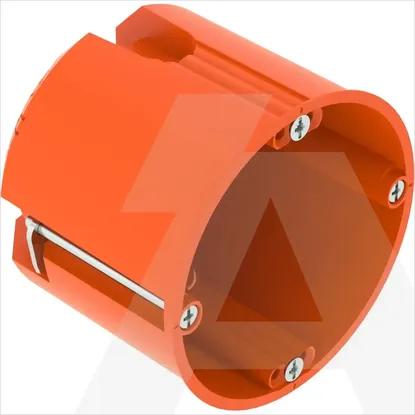

2003804 | HG 61
