Details
- •Sensors
- •End switch
- •1 KOM
- •LOVATO
Technical specifications
Switching functionSlow-action switch
Explosion safety category for gasNone
Material housingMetal
Suitable for safety functionsNo
Type of interface for safety communicationNone
Coating housingPowder coating
With status indicationNo
Rated operation current Ie at AC-15, 230 V3A
Explosion safety category for dustNone
Type of electric connectionWith cable preassembled
Type of interfaceNone
Output electronicNo
Number of safety auxiliary contacts0
Rated operation current Ie at AC-15, 24 V15A
Height of sensor70mm
Construction type housingCuboid
Width sensor30mm
Degree of protection (IP)IP67
Type of control elementRoller cam
Ambient temperature during operating-25 - 70°C
Number of contacts as change-over contact0
Length of sensor16mm
Forced openingYes
Number of contacts as normally closed contact1
Switching function latchingNo
Number of contacts as normally open contact1
Alignment of the control elementRoller cam straight
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

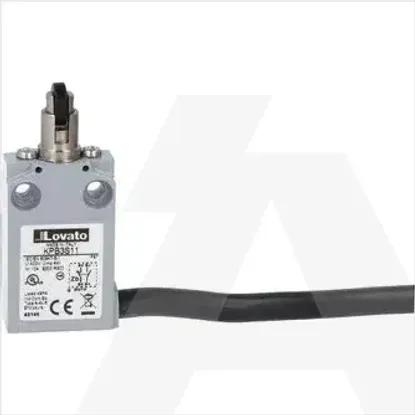

TOP ROLLER PREWIRED METAL 1NO+1NC S
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- LOVATO
DetailsTechnical specifications
Technical specifications
Switching function
Slow-action switch
Explosion safety category for gas
None
Material housing
Metal
Suitable for safety functions
Type of interface for safety communication
None
Coating housing
Powder coating
With status indication
Rated operation current Ie at AC-15, 230 V
3A
Explosion safety category for dust
None
Type of electric connection
With cable preassembled
Type of interface
None
Output electronic
Number of safety auxiliary contacts
0
Rated operation current Ie at AC-15, 24 V
15A
Height of sensor
70mm
Construction type housing
Cuboid
Width sensor
30mm
Degree of protection (IP)
IP67
Type of control element
Roller cam
Ambient temperature during operating
-25 .. 70°C
Number of contacts as change-over contact
0
Length of sensor
16mm
Forced opening
Number of contacts as normally closed contact
1
Switching function latching
Number of contacts as normally open contact
1
Alignment of the control element
Roller cam straight
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
