Registration is currently available to business customers only (B2B).

Details

  • •Low-voltage industrial components

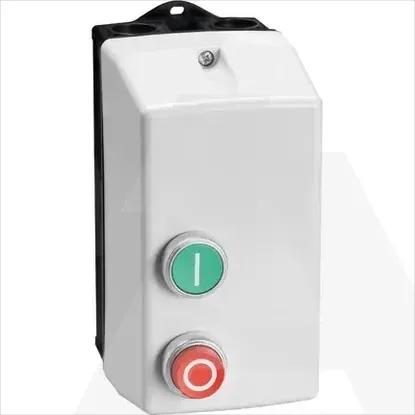

  • •Motor starter/Motor starter combination
  • •Minimum order quantity: 1 pcs
  • •LOVATO

Technical specifications

Width88mm
With transformerNo
Depth140mm
Height184mm
Number of indicator lights0
Supporting protocol for PROFIBUSNo
Number of auxiliary contacts as normally closed contact0
Suitable for emergency stopNo
Supporting protocol for ASINo
Supporting protocol for CANNo
Number of auxiliary contacts as normally open contact0
Supporting protocol for TCP/IPNo
Supporting protocol for LONNo
Rated control supply voltage Us at AC 60HZ400 - 400V
Rated control supply voltage Us at AC 50HZ400 - 400V
Supporting protocol for INTERBUSNo
Rail mounting possibleNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for DeviceNetNo
Supporting protocol for other bus systemsNo
Supporting protocol for ModbusNo
Supporting protocol for SERCOSNo
Supporting protocol for SUCONETNo
External reset possibleYes
Supporting protocol for Data-HighwayNo
With short-circuit releaseNo
Type of electrical connection of main circuitScrew connection
Supporting protocol for PROFINET CBANo
Supporting protocol for EtherNet/IPNo
With fuseNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET IONo
Supporting protocol for PROFIsafeNo
Release classCLASS 10 A
Ambient temperature, upper operating limit60°C
Supporting protocol for SafetyBUS pNo
Supporting protocol for DeviceNet SafetyNo
Voltage type for actuatingAC
Rated operation power at AC-3, 230 V, 3-phase2.2kW
Type of electrical connection for auxiliary- and control current circuitScrew connection
Supporting protocol for AS-Interface Safety at WorkNo
Rated conditional short-circuit current, type 2, 400 V50000A
Rated conditional short-circuit current, type 2, 230 V50000A
Degree of protection (NEMA)4X
Temperature compensated overload protectionYes
Rated operation power at AC-3, 400 V0.37kW
Rated operation current Ie1.5A
Overload release current setting0.9 - 1.5A
Degree of protection (IP)IP65
Type of motor starterDirect online starter (DOL)
Rated operation current at AC-3, 400 V1.5A
