Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Release characteristicC
Built-in depth75.5mm
Voltage typeAC
Leakage current typeAC
Rated insulation voltage Ui500V
Current limiting class3
Surge current capacity0.25kA
Rated impulse withstand voltage Uimp4kV
Over voltage category3
Frequency50 Hz
Ambient temperature during operating-25 - 40°C
Rated short-circuit breaking capacity according to IEC 60947-20kA
Anti-nuisance tripping versionNo
With interlocking deviceNo
Pollution degree2
Flush-mounted installationNo
Rated short-circuit breaking capacity according to EN 610094.5kA
Connectable conductor cross section solid-core1 - 25mm²
Disconnection characteristicUndelayed
Connectable conductor cross section multi-wired1 - 25mm²
Degree of protection (IP)IP20
Rated current32A
Rated voltage415V
Rated fault current0.03A
Width in number of modular spacings4
Number of protected poles3
Concurrently switching neutral conductorYes
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 61009-14.5kA
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

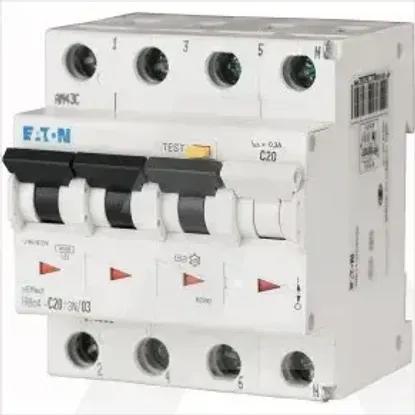

FRBM4-C32/3N/003
