Details
- •Programmable logic controllers PLC
- •Fieldbus, decentr. periphery - communication module
- •1 KOM
- •ABB
Technical specifications
Number of HW-interfaces serial TTY-
Suitable for safety functionsNo
Supporting protocol for LONNo
Voltage type of supply voltageAC
Height145mm
Number of HW-interfaces RS-485-
Number of HW-interfaces other-
Number of HW-interfaces RS-422-
Number of HW-interfaces RS-232-
Number of HW-interfaces parallel-
Number of HW-interfaces industrial Ethernet-
Depth310mm
Width400mm
Supporting protocol for TCP/IPNo
Number of HW-interfaces USB-
Supporting protocol for PROFIBUSNo
Supporting protocol for CANNo
Supporting protocol for ASINo
Supporting protocol for Data-HighwayNo
Appendant operation agent (Ex ib)No
Appendant operation agent (Ex ia)No
Supporting protocol for ModbusNo
Rail mounting possibleNo
Supporting protocol for DeviceNetNo
Number of interfaces PROFINET-
Supporting protocol for KNXNo
Fieldbus connection over separate bus coupler possibleYes
Degree of protection (IP)IP20
System accessoryYes
Front built-in possibleNo
Supporting protocol for other bus systemsNo
Number of HW-interfaces Wireless-
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SUCONETNo
Supporting protocol for SERCOSNo
Explosion safety category for gasNone
Explosion safety category for dustNone
With potential separationYes
Rack-assembly possibleNo
Radio standard BluetoothNo
Wall mounting/direct mountingNo
Radio standard Wi-Fi 802.11No
Supporting protocol for INTERBUSNo
IO link masterNo
Performance level according to EN ISO 13849-1None
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
Certified for UL hazardous location class IINo
Certified for UL hazardous location class INo
Certified for UL hazardous location class IIINo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for PROFIsafeNo
Supply voltage DC100 - 240V
Radio standard UMTSNo
Supply voltage AC 60 Hz100 - 240V
Number of HW-interfaces CAN-
Supporting protocol for PROFINET CBANo
SIL according to IEC 61508None
Radio standard GSMNo
Supporting protocol for SafetyBUS pNo
Certified for UL hazardous location division 1No
Radio standard GPRSNo
Supply voltage AC 50 Hz2 - 2V
Supporting protocol for EtherCATNo
Radio standard eGPRSNo
Radio standard LTENo
Supporting protocol for PROFINET IONo
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location division 2No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group C (ethylene)No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

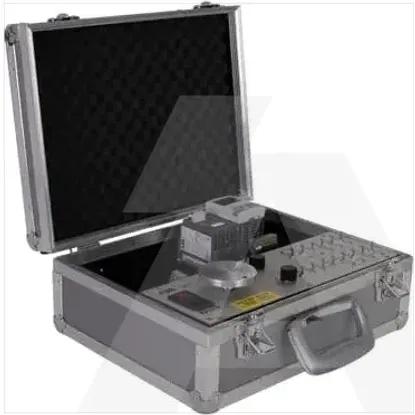

1SAJ928004R0002 | TBU22-FBP.0
