Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •ABB
Technical specifications
Number of poles3
Rated operating voltage250 - 690V
With integrated auxiliary switchNo
With integrated under voltage releaseNo
Type of electrical connection of main circuitScrew connection
Type of control elementTurn button
Power loss8.4W
Degree of protection (IP)IP20
Switch off techniqueThermomagnetic
Device constructionComplete device in housing
Rated operation power at AC-3, 230 V7.5kW
Rated operation power at AC-3, 400 V7.5kW
Width45mm
Height45mm
Depth45mm
Rated permanent current Iu16A
Overload release current setting10 - 16A
With thermal protectionYes
Rated short-circuit breaking capacity lcu at 400 V, AC100kA
Adjustment range undelayed short-circuit release10 - 16A
Phase failure sensitiveYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

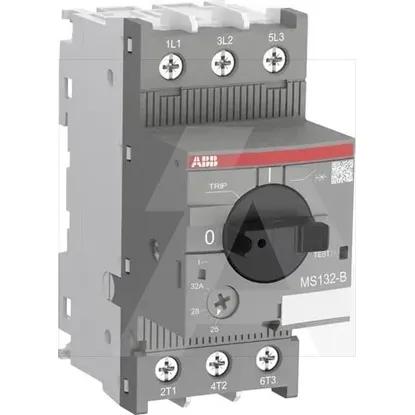

1SAM350200R1011 | MS132-16B
