Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Rated operation current Ie at AC-15, 230 V3A
With status indicationNo
Type of interface for safety communicationNone
Switching functionQuick-break switch
Explosion safety category for gasNone
Rated operation current Ie at DC-13, 230 V0.27A
Construction type housingCuboid
Coating housingPowder coating
Material housingMetal
Explosion safety category for dustNone
Type of electric connectionWith cable preassembled
Suitable for safety functionsNo
Degree of protection (IP)IP67
Type of interfaceNone
Forced openingNo
Number of safety auxiliary contacts0
Type of control elementPlunger
Rated operation current Ie at DC-13, 125 V0.55A
Rated operation current Ie at AC-15, 125 V5.5A
Output electronicNo
Rated operation current Ie at AC-15, 24 V10A
Height of sensor86mm
Alignment of the control elementOther
Rated operation current Ie at DC-13, 24 V2.8A
Length of sensor39mm
Number of contacts as normally closed contact1
Number of contacts as change-over contact0
Width sensor30mm
Ambient temperature during operating-25 - 70°C
Number of contacts as normally open contact1
Degree of protection (NEMA)6
Diameter sensor0mm
Switching function latchingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

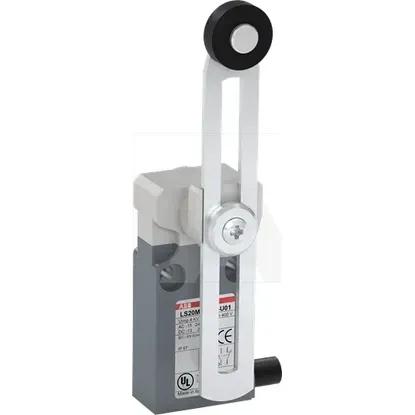

1SBV015551R2601 | LS20M51B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated operation current Ie at AC-15, 230 V
3A
With status indication
Type of interface for safety communication
None
Switching function
Quick-break switch
Explosion safety category for gas
None
Rated operation current Ie at DC-13, 230 V
0.27A
Construction type housing
Cuboid
Coating housing
Powder coating
Material housing
Metal
Explosion safety category for dust
None
Type of electric connection
With cable preassembled
Suitable for safety functions
Degree of protection (IP)
IP67
Type of interface
None
Forced opening
Number of safety auxiliary contacts
0
Type of control element
Plunger
Rated operation current Ie at DC-13, 125 V
0.55A
Rated operation current Ie at AC-15, 125 V
5.5A
Output electronic
Rated operation current Ie at AC-15, 24 V
10A
Height of sensor
86mm
Alignment of the control element
Other
Rated operation current Ie at DC-13, 24 V
2.8A
Length of sensor
39mm
Number of contacts as normally closed contact
1
Number of contacts as change-over contact
0
Width sensor
30mm
Ambient temperature during operating
-25 .. 70°C
Number of contacts as normally open contact
1
Degree of protection (NEMA)
6
Diameter sensor
0mm
Switching function latching
