Details
- •Sensors
- •End switch
- •1 KOM
- •ABB
Technical specifications
Explosion safety category for gasNone
Rated operation current Ie at AC-15, 230 V3A
Coating housingOther
Rated operation current Ie at DC-13, 230 V0.27A
Rated operation current Ie at AC-15, 24 V10A
Explosion safety category for dustNone
Type of interface for safety communicationNone
With status indicationNo
Output electronicNo
Forced openingNo
Rated operation current Ie at AC-15, 125 V5.5A
Type of interfaceNone
Degree of protection (IP)IP67
Type of electric connectionWith cable preassembled
Suitable for safety functionsNo
Number of safety auxiliary contacts0
Type of control elementPlunger
Construction type housingCuboid
Switching functionQuick-break switch
Material housingPlastic
Rated operation current Ie at DC-13, 125 V0.55A
Rated operation current Ie at DC-13, 24 V2.8A
Switching function latchingNo
Width sensor30mm
Alignment of the control elementOther
Number of contacts as normally open contact1
Length of sensor39mm
Number of contacts as normally closed contact1
Number of contacts as change-over contact0
Height of sensor86mm
Degree of protection (NEMA)6
Ambient temperature during operating-25 - 70°C
Diameter sensor0mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

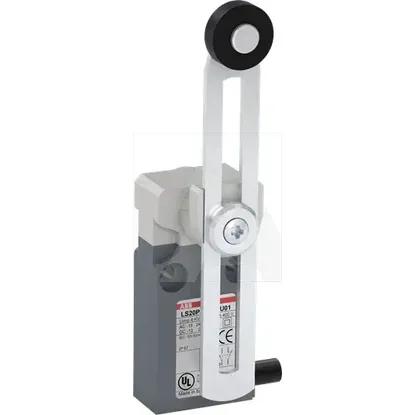

1SBV015951R3801 | LS20P51B11-U01
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Explosion safety category for gas
None
Rated operation current Ie at AC-15, 230 V
3A
Coating housing
Other
Rated operation current Ie at DC-13, 230 V
0.27A
Rated operation current Ie at AC-15, 24 V
10A
Explosion safety category for dust
None
Type of interface for safety communication
None
With status indication
Output electronic
Forced opening
Rated operation current Ie at AC-15, 125 V
5.5A
Type of interface
None
Degree of protection (IP)
IP67
Type of electric connection
With cable preassembled
Suitable for safety functions
Number of safety auxiliary contacts
0
Type of control element
Plunger
Construction type housing
Cuboid
Switching function
Quick-break switch
Material housing
Plastic
Rated operation current Ie at DC-13, 125 V
0.55A
Rated operation current Ie at DC-13, 24 V
2.8A
Switching function latching
Width sensor
30mm
Alignment of the control element
Other
Number of contacts as normally open contact
1
Length of sensor
39mm
Number of contacts as normally closed contact
1
Number of contacts as change-over contact
0
Height of sensor
86mm
Degree of protection (NEMA)
6
Ambient temperature during operating
-25 .. 70°C
Diameter sensor
0mm
