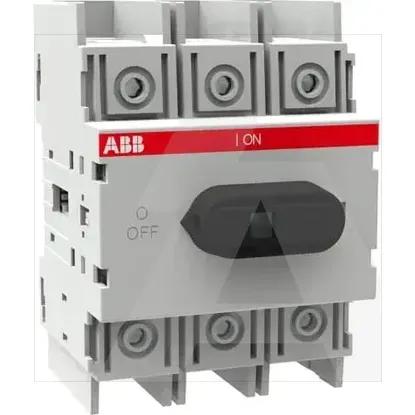

1SCA022429R9140 | OT125M3
Code: 1981556
ManufacturerABB
Catalog number1SCA022429R9140
TypeSwitch disconnector
CategorySwitch disconnector
EAN code6417019135410
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Rated operating voltage750 - 750V
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq50kA
Number of switches1
Type of electrical connection of main circuitScrew connection
Suitable for floor mountingNo
Rated short-time withstand current lcw2.5kA
Suitable for front mounting centreNo
Motor drive optionalNo
Suitable for intermediate mountingNo
Type of control elementNone
Suitable for front mounting 4-holeNo
Version as maintenance-/service switchYes
Motor drive integratedNo
Version as main switchYes
Rated operation power at AC-23, 400 V45kW
Suitable for distribution board installationYes
Version as safety switchNo
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP20
InterlockableNo
Version as emergency stop installationNo
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V45kW
Rated permanent current at AC-21, 400 V125A
Voltage release optionalNo
Degree of protection (NEMA)1
Version as reversing switchNo
Rated permanent current at AC-23, 400 V90A
Rated permanent current Iu125A
Number of poles3
Max. rated operation voltage Ue AC750V
