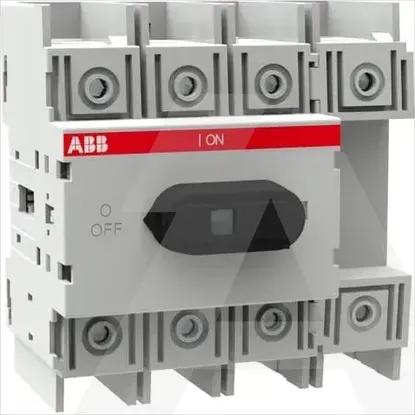

1SCA022429R9220 | OT125M4
Code: 1981557
ManufacturerABB
Catalog number1SCA022429R9220
TypeSwitch disconnector
CategorySwitch disconnector
EAN code6417019135427
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
InterlockableNo
Rated operation power at AC-3, 400 V-kW
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as normally open contact0
Number of switches1
Rated operating voltage750 - 750V
Conditioned rated short-circuit current Iq50kA
Rated operation power at AC-23, 400 V45kW
Suitable for front mounting centreNo
Version as reversing switchNo
Motor drive integratedNo
Type of control elementNone
Degree of protection (NEMA)1
Rated short-time withstand current lcw2.5kA
Version as emergency stop installationNo
Rated permanent current at AC-23, 400 V90A
Type of electrical connection of main circuitScrew connection
Version as main switchYes
Device constructionBuilt-in device fixed built-in technique
Version as maintenance-/service switchYes
Voltage release optionalNo
Rated permanent current at AC-21, 400 V125A
Version as safety switchNo
Motor drive optionalNo
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Switching power at 400 V45kW
Suitable for floor mountingNo
Suitable for distribution board installationYes
Rated permanent current Iu125A
Number of poles4
Max. rated operation voltage Ue AC750V
