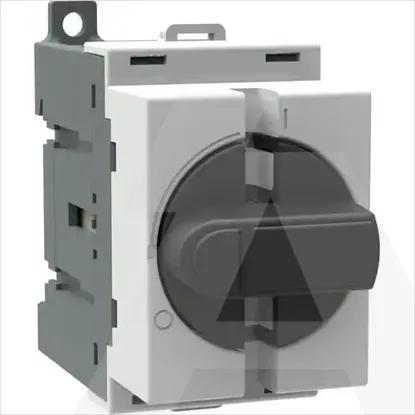

1SCA022497R0490 | OT40M3
Code: 1981580
ManufacturerABB
Catalog number1SCA022497R0490
TypeSwitch disconnector
CategorySwitch disconnector
EAN code6417019158402
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Version as main switchYes
Rated operating voltage750 - 750V
Number of switches1
Motor drive integratedNo
Version as emergency stop installationNo
Type of control elementNone
InterlockableNo
Version as safety switchNo
Degree of protection (IP), front sideIP20
Type of electrical connection of main circuitScrew connection
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Switching power at 400 V11kW
Rated operation power at AC-23, 400 V11kW
Motor drive optionalNo
Suitable for front mounting centreNo
Rated short-time withstand current lcw0.5kA
Suitable for distribution board installationYes
Rated permanent current at AC-21, 400 V40A
Degree of protection (NEMA)1
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
Version as reversing switchNo
Version as maintenance-/service switchYes
Rated permanent current at AC-23, 400 V23A
Suitable for intermediate mountingNo
Rated permanent current Iu40A
Number of poles3
Max. rated operation voltage Ue AC750V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022497R0490 | OT40M3
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as normally open contact
0
Rated operation power at AC-3, 400 V
-kW
Version as main switch
Rated operating voltage
750 .. 750V
Number of switches
1
Motor drive integrated
Version as emergency stop installation
Type of control element
None
Interlockable
Version as safety switch
Degree of protection (IP), front side
IP20
Type of electrical connection of main circuit
Screw connection
Conditioned rated short-circuit current Iq
-kA
Number of auxiliary contacts as change-over contact
0
Number of auxiliary contacts as normally closed contact
0
Suitable for floor mounting
Suitable for front mounting 4-hole
Switching power at 400 V
11kW
Rated operation power at AC-23, 400 V
11kW
Motor drive optional
Suitable for front mounting centre
Rated short-time withstand current lcw
0.5kA
Suitable for distribution board installation
Rated permanent current at AC-21, 400 V
40A
Degree of protection (NEMA)
1
Device construction
Built-in device fixed built-in technique
Voltage release optional
Version as reversing switch
Version as maintenance-/service switch
Rated permanent current at AC-23, 400 V
23A
Suitable for intermediate mounting
Rated permanent current Iu
40A
Number of poles
3
Max. rated operation voltage Ue AC
750V
