Details
- •Low-voltage industrial components

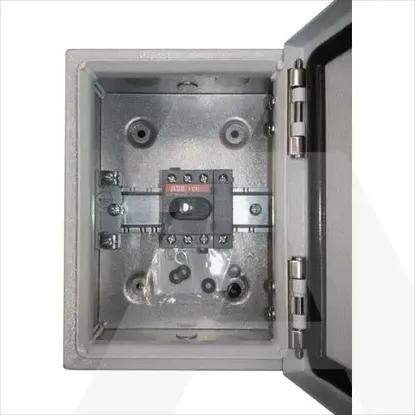

- •Switch disconnector (low voltage)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of poles4
Type of control elementTurn button
Rated operating voltage750 - 750V
Version as safety switchNo
Width in number of modular spacings-
Rated permanent current Iu25A
Rated operation power at AC-23, 400 V7.5kW
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Depth100mm
Degree of protection (IP), front sideIP65
Motor drive integratedNo
Height200mm
Version as main switchYes
Number of auxiliary contacts as change-over contact0
Number of switches1
Width150mm
Rated operation power at AC-3, 400 V-kW
InterlockableYes
Suitable for intermediate mountingNo
Degree of protection (NEMA)Other
Version as reversing switchNo
Switching power at 400 V7.5kW
Max. rated operation voltage Ue AC750V
Rated permanent current at AC-23, 400 V16A
Voltage release optionalNo
Device constructionComplete device in housing
Suitable for front mounting centreNo
With pre-assembled cablingNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V-A
Rated short-time withstand current lcw0.5kA
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Colour control elementBlack
Suitable for distribution board installationYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022562R4120 | OTL16B4M
